Silent Check Valve, MSS SP-126, ASTM A536 65-45-12, 300 PSI

Silent Check Valve, MSS SP-126, ASTM A536 65-45-12, 300 PSI

Key Specifications / Features

This Silent Check Valve, manufactured in China, meets the MSS SP-126 standard and is made from durable ductile iron (ASTM A536 Grade 65-45-12). Designed for high-pressure applications up to 300 PSI, it features a fusion-bonded epoxy-coated surface for enhanced corrosion resistance. The valve is equipped with flange ends for easy installation.
Request a quote

Detail Information


Product Item: Silent Check Valve
Standard: MSS SP-126
Material: Ductile Iron ASTM A536 Grade 65-45-12
Working Pressure: 300 PSI
200 PSI and 250 PSI available upon request
Connection Ends: Flange to ASME B16.1 Class 125 LB
Temperature Range: 0°C to 80°C
Coating: Fusion Bonded Epoxy Coating in accordance with ANSI/AWWA C550 or painting upon request

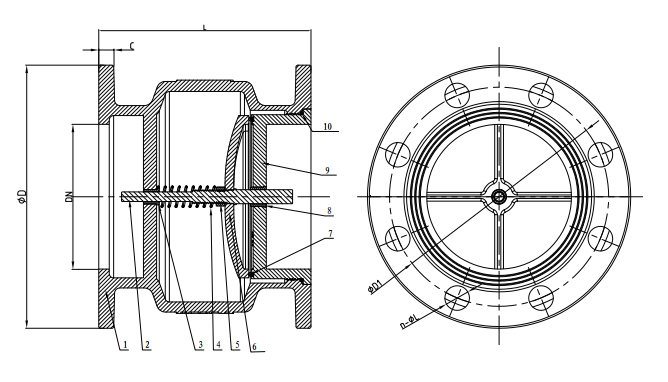

Silent Check Valve Design

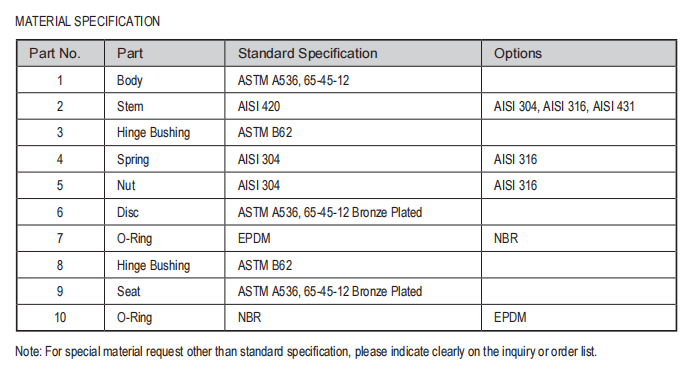

Silent Check Valve Material Specification

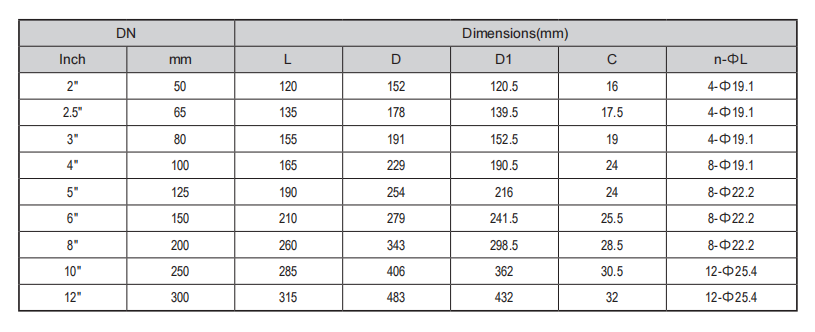

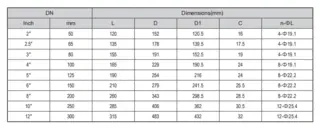

Silent Check Valve Dimensions









Similar Products

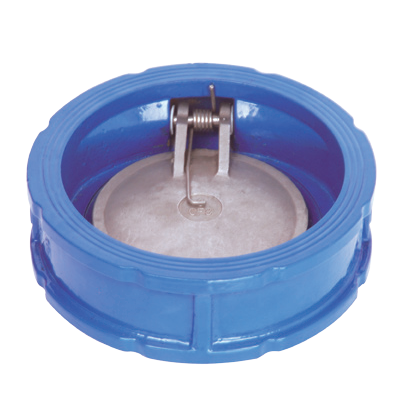

Single Door Wafer Check Valve, ASTM A536 65-45-12, 2-12 IN
Single Door Wafer Check Valve, ASTM A536 65-45-12, 2-12 IN

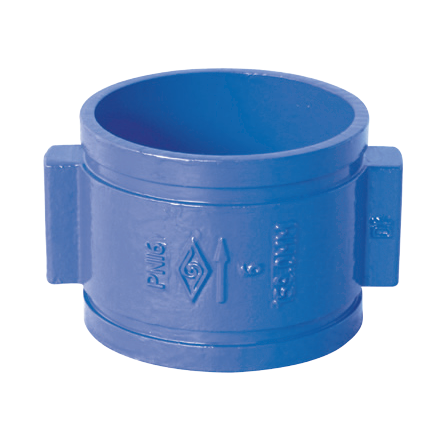

Grooved Double Door Check Valve, ASTM A536 65-45-12, 8-14 IN
Grooved Double Door Check Valve, ASTM A536 65-45-12, 8-14 IN

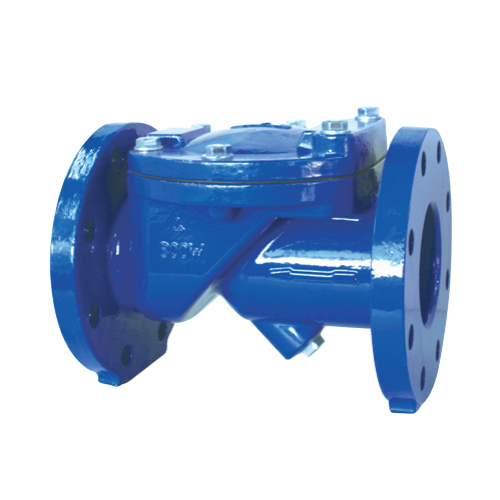

ASTM A536 65-45-12 Swing Check Valve, 2-12 Inch, 300 PSI
