ASTM A733 Dielectric Nipple, ASTM A53 E, 300 PSI, PP Lined
Model Number: LPF-20241213-OF-01
Key Specifications / Features
The Carbon Steel Dielectric Nipple is designed for reliable fluid flow in piping systems, made from durable ASTM A53 Type E carbon steel and compliant with ASTM A733 dimensions. With a 300 PSI pressure rating, it features a PP liner for enhanced corrosion resistance, zinc electroplating for added durability, and ASME B1.20.1 threads for secure, leak-free connections.
Detail Information

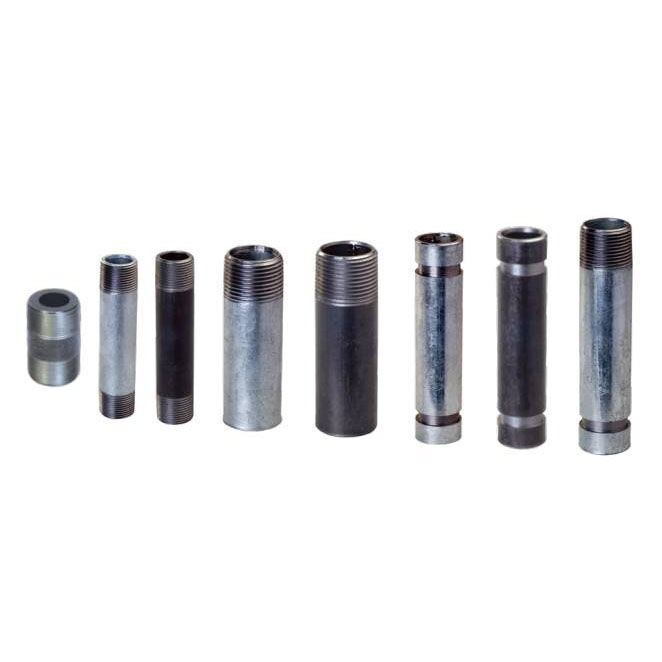

Product Name: Dielectric Pipe Nipple

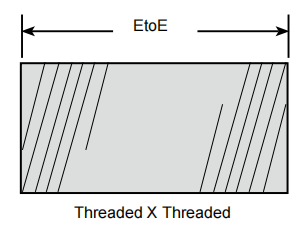

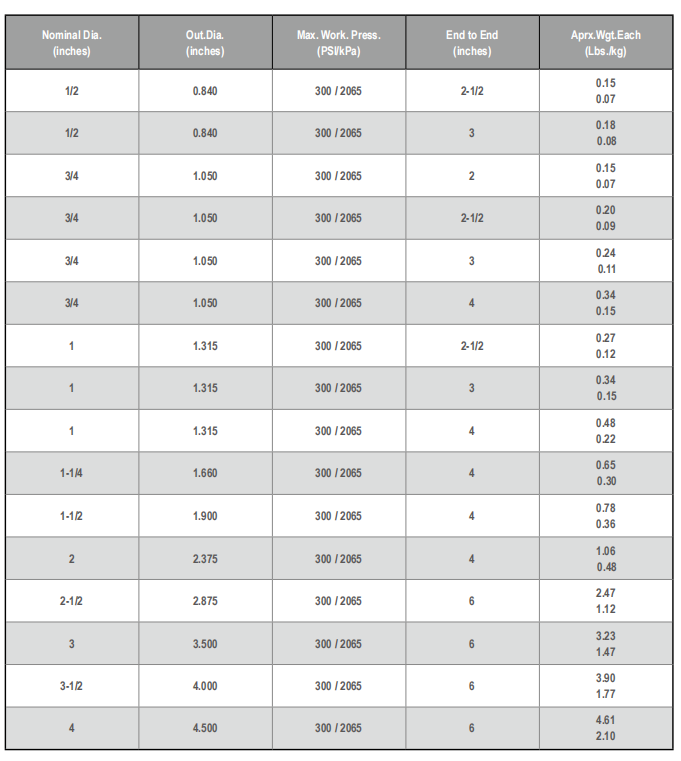

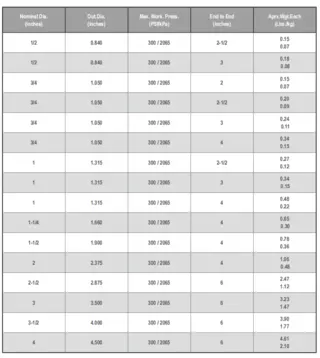

Dimension: ASTM A733
Working Pressure: 300 PSI
Materials:
Body: Carbon Steel Pipe to ASTM A53 Type E, Zinc Electroplated
Liner: Polypropylene (PP) Plastic
Thread: ASME B1.20.1
Temperature Range: 32°F to 230°F
Description
For cool or heat water supply, good corrosion resistance in water.
Plastic-lined steel nipples act as an insulator to prevent destructive electrolytic corrosion between dissimilar metals.
Crosslinked polyethylene (PEX) plastic and polyethylene (PE) plastic available upon request.
It meets NSF/ANSI 372 lead-free requirement.
