Y-Type Three-Way Ball Valve, A351 CF8, DN65, PN16, Pneumatic

Product Name: Y-Type Three-Way Ball Valve, 135 Degree Port
Body Material: ASTM A351 CF8
Size: DN65, 2-1/2 Inch
Pressure: PN16, Class 150 LB
End Connection: Flanged
Operation: Pneumatic Actuator

The Y-type 135-degree 3-way ball valve is a versatile and reliable solution designed for efficient flow-switching in various industries, including automotive, power, and lithium battery manufacturing. This valve enables precise flow control and media distribution, making it an ideal choice for applications that require flow-switching capabilities in complex systems.

Working Process of Pneumatic Diverter Valve

A pneumatic diverter valve consists of an inlet, an outlet, and a mechanism (such as a rotating disc or sliding gate) that directs powder flow to the desired outlet. When activated, the valve adjusts the direction of the powder flow, allowing it to be diverted to a different location or process within the handling system. This functionality is crucial for controlling the distribution of powdered materials in various industrial applications.

Product Range

» Body Material: Stainless steel and carbon steel, offering high strength and durability.
» Body Style: Available in Y 120° or Y 135° port
» Sealing Material: PTFE, RPTFE, metal seal + STL for reliable sealing.
» Size Range: 2-12 Inch (DN50-DN300)
» Pressure Range: PN16, PN25, PN40, Class 150 LB, Class 300 LB
» Temperature Range: Up to 180°C
» Media Compatibility: Suitable for solid powders, liquid bulk, rubber, and other media.
» Control Options: Pneumatic actuator and electric actuator for precise flow control and management.
» Unique Design: The three-way Y-type 135-degree configuration ensures even flow distribution and facilitates medium switching without residue.

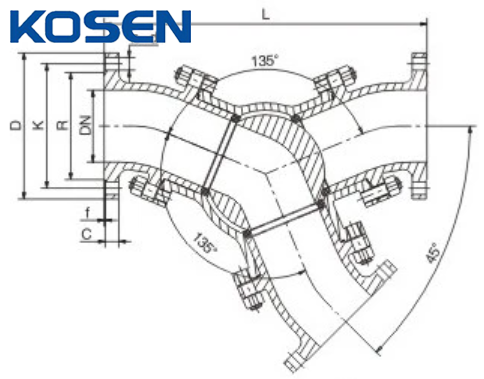

Main Connection Dimensions
