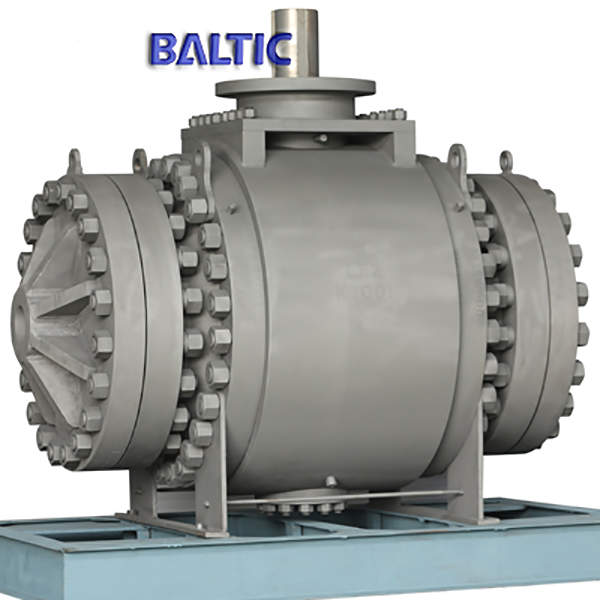

Metal Seated Trunnion Ball Valve, ASTM A182 F316, 4 IN, CL900

Name: Metal Seated Trunnion Ball Valve, ASTM A182 F316, 4 IN, CL900
SKU: KV-20250103-MSBV-01
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

The Metal Seated Trunnion Mounted Ball Valve is manufactured according to API 6D standards, featuring a stainless steel ASTM A182 F316 body for superior corrosion resistance and durability. With a size of 4 inches (DN100) and a pressure class of 900 LB (PN150), it is designed for high-pressure applications. The valve includes RF (Raised Face) ends and is gear box operated for ease of control and reliable performance.

Request a quote

Detail Information

Product Name: Metal Seated Trunnion Mounted Ball Valve
Design Standard: API 6D
Body Material: ASTM A182 F316
Size: 4 Inch, DN100
Pressure: Class 900 LB, PN150
End Connection: RF
Operation: Gear Box

The Metal Seated Ball Valve features a metal-to-metal sealing mechanism for the ball and seat, ensuring enhanced durability in harsh operating conditions. Various advanced hardening technologies are used for the ball and seat, including HVOF coating, nickel-based alloy spray welding, and tungsten carbide alloy spray welding, among others. The sealing face material offers exceptional heat resistance, ranging from 540°C to 980°C, along with outstanding wear and impact resistance. The seat is made of stainless steel with stellite alloy pile-up welding, while the ball is crafted from stainless steel and treated with hard chrome plating, vacuum coating, or tungsten-titanium alloy and stellite alloy pile-up welding. The valve is also equipped with a spring-preloaded seat, ensuring reliable sealing, stability of operating torque, and operational flexibility.

Technical Specification

» Size Range: NPS 2-36 Inch (DN50–DN900)
» Design Pressure: Class 150–900 LB (PN10–PN160)
» Material: ASTM A105N, A350 LF2, A182 F304, F304L, F316, F316L, F51, etc.
» Temperature Range: -29°C to 300°C
» End Connections: RF, RTJ, BW
» Medium: Water, gas, oil, etc.
» Trim Materials: 13%Cr, SS 304, SS 304L, SS 316, SS 316L, and other Specials
» Operation: Handle, worm gear, electric, pneumatic
» Design and Manufacture: API 6D, BS 5351, ASME B16.34
» Face to Face (End to End): ASME B16.10
» Flanged Connection: ASME B16.5, ASME B16.47
» Test and Inspection: API 598, API 6D
» Butt Welded End: ASME B16.25
» Fire Safety: API 607, API 6A

Product Features

» Advanced Ball and Seat Hardening Technology
» Flexible Valve Opening and Closing
» Fireproof Structure Design
» Double Block and Bleed (Metal Seated Trunnion Ball Valve)
» Reliable Sealing Performance
» Blow-out Proof Stem
» Corrosion and Sulfide Stress Resistance
» Optional Locking Device or Stem Extension
» Optional Direct Mounting to ISO 5211
» Full Port or Reduced Bore Options
