2PC Threaded Ball Valve, ASTM A216 WCB, 5000 PSI, NPT

Product Name: 2PC Thread Ball Valve
Features: Full Port, 2 Piece Body
Body Material: Carbon Steel ASTM A216 WCB
Size: Customized
Pressure: 5000 PSI
End Connection: NPT Threaded

The Oil Field Thread Ball Valve is designed for reliable fluid control in oilfield applications. It features a robust ball valve body with valve tubes on both sides. The right side of the valve body's inner cavity is equipped with a secondary slide rail, while the valve rod passes through the body. A stable block is installed at the top of the valve rod, with a handwheel securely attached to the stable block. The valve rod also includes a limit device within its inner cavity for precise operation.

Technical Specifications

Size Range: NPS 2–4 Inch (DN50–DN100)
Temperature Range: -29°C to 120°C
Pressure: 3000 PSI, 5000 PSI
Body and Bonnet Material: ASTM A216 WCB
Seat Material: DELRIN
Ball and Stem Materials: SS 420, SS 304, SS 316
End Connections: ASME B1.20.1 (NPT), API 5B LP
Inspection and Testing: API 598
Medium: Water, gas, oil, etc.

Product Features

Threaded Body Construction
Adjustable Packing Gland
Blow-out-Proof Stem
Lockable Lever Handle
Lever Operated, Threaded
Floating Ball
Fire Safe Design
Rugged Locking Device
Grease Fitting
NACE MR0175 Compliant
Full Port or Reduced Bore Optional

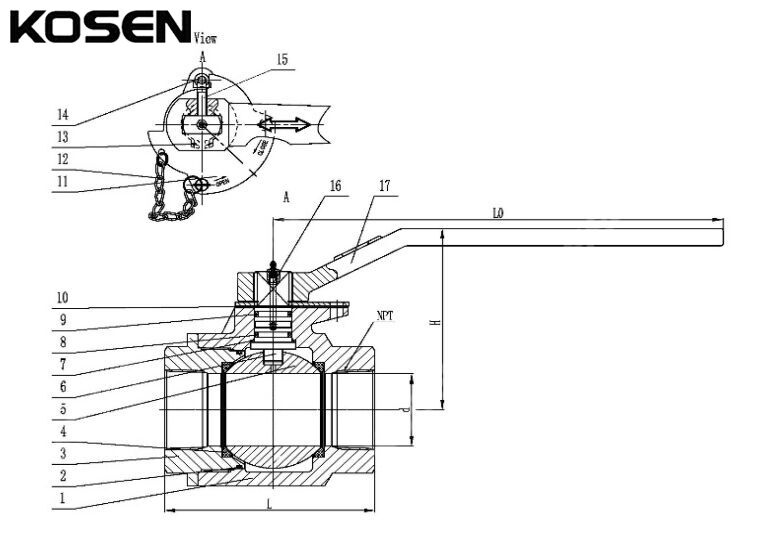

Materials of Main Parts
