LNG Safety Valve, API 526, A216 WCB, DN50, PN40, 2 Inch, RF

Name: LNG Safety Valve, API 526, A216 WCB, DN50, PN40, 2 Inch, RF
SKU: KV-20250217-SV-01
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

The Liquefied Natural Gas (LNG) Safety Valve, manufactured per API 526, features a durable ASTM A216 WCB carbon steel body for high-pressure protection. Sized at DN50 (2 inches) and rated for PN40/Class 300 LB, it is equipped with RF flanged ends for secure and leak-proof installation. Engineered for LNG applications, it ensures reliable overpressure protection and system safety.

Request a quote

Detail Information

Product Name: Liquefied Natural Gas Safety Valve
Design Standard: API 526
Body Material: ASTM A216 WCB
Size: DN50, 2 Inch
Pressure: PN40, Class 300 LB
End Connection: RF Flanged

The Liquefied Natural Gas (LNG) safety valves are designed for use in liquid-phase outlet pipes, with an operational temperature range of -40°C to 80°C. These valves are equipped with a unique mechanism that automatically returns liquefied gas to the gas tank when the inlet and outlet differential pressure exceeds 0.5 MPa, ensuring safety and efficient operation in LNG systems.

Technical Specifications

» Normal Size Range: 1/2-16 Inch (DN15-DN400)
» Normal Pressure Rating: Class 150 LB (PN16-PN40)
» Materials: Carbon Steel, Stainless Steel, Alloy Steel, Duplex, or Other Specials
» Design and Manufacture: GB/T 12243-1989, API RP 520, 521, API 526, API 527
» Face to Face (End to End): GB/T 14087, JB/T 6441, JB/T 2203, JB/T 9624, JB/T 53170
» Flanged Connection: ASME B16.5, DIN 2543 to 2545, EN 12627
» Test and Inspection: API 598, DIN 3230, MSS SP-117
» End Connections: Flanged (FF, RF, RTJ) to international standards
» Working Medium: gas, liquid and steam

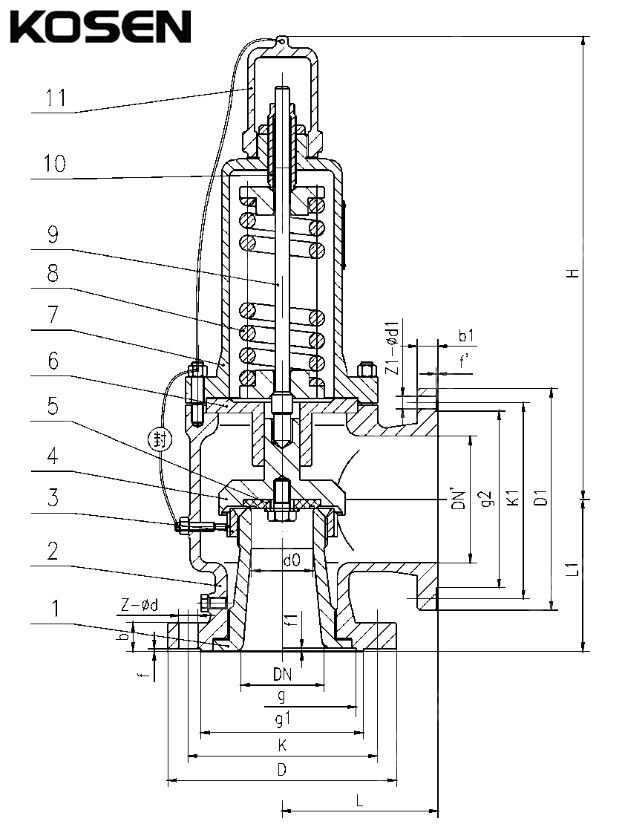

Main Parts and Materials

No	Name of Parts	Material
1	Nozzle	2Cr13
2	Body	A216 WCB
3	Adjusting Ring	2Cr13
4	Disc holder	2Cr13
5	Disc	PTFE
6	Guide sleeve	2Cr13
7	Bonnet	ZG230~450
8	Spring	50CrVA
9	Stem	2Cr13
10	Adjusting Blot	AISI 1045
11	Cap	ZG230~450
