ASTM A216 WCB Ball Float Steam Trap, DN50, PN16, Single Seat

Name: ASTM A216 WCB Ball Float Steam Trap, DN50, PN16, Single Seat
SKU: KV-20250217-ST-01
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

The Single Seat Ball Float Steam Trap is designed per ISO 6552/EN 26704 standards, featuring a robust ASTM A216 WCB carbon steel body for durability and efficient condensate removal. Sized at DN50 (2 inches) and rated for PN16/Class 150 LB pressure, it is equipped with flanged ends for secure installation. Ideal for steam systems, it ensures reliable operation and energy efficiency in industrial applications.

Request a quote

Detail Information

Product Name: Single Seat Ball Float Steam Trap
Design Standard: ISO 6552; EN 26704
Body Material: ASTM A216 WCB
Size: DN50, 2 Inch
Pressure: PN16, Class 150 LB
End Connection: Flanged

Ball float steam traps are highly versatile and designed to efficiently handle both light and heavy condensate loads. Despite their compact size, these traps offer high and continuous discharge capacity, ensuring optimal heat transfer. They are ideal for draining plants with automatic temperature control systems. The traps maintain a reliable water seal, preventing steam leakage and ensuring condensate water is always present in front of the valve. With no noise during operation, they contribute to a quieter, more environmentally-friendly system. During startup, the traps rapidly expel low-temperature condensate water and air, significantly reducing equipment start-up time. The internal components are made from stainless steel, offering superior resistance to corrosion and cavitation erosion.

Technical Specifications

Normal Size Range: 1-1/4 Inch - 3 Inch (DN32-DN80)
Normal Pressure Rating: PN16, PN25, PN40, Class 150 LB
Material: ASTM A216 WCB, A351 CF8, CF8M, CF3, CF3M
Maximum Allowable Pressure (PMA): 40 Barg
Maximum Allowable Temperature (TMA): 300°C
Maximum Differential Pressure (ΔPMX): 32 Bar
Medium: Steam condensate

Standards

Design and Manufacture: ISO 6552; EN 26704

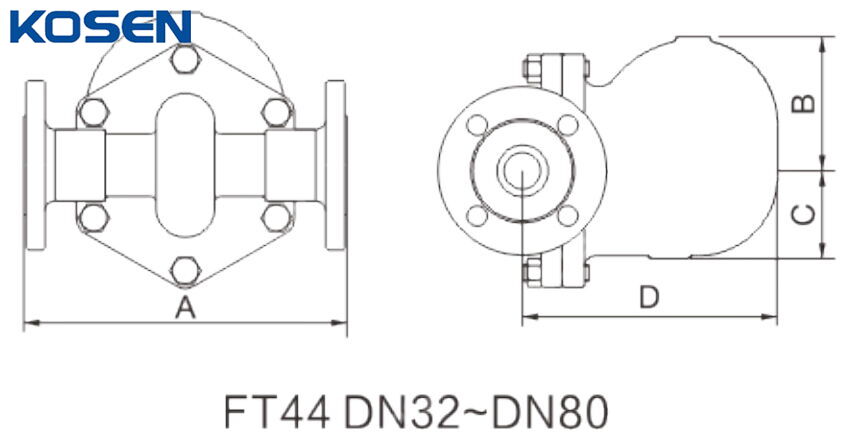

Face to Face (End to End): EN 26554
Flanged Connection: GB/T 9113
Test and Inspection: EN 26948
