EPDM Lined Diaphragm Valves, BS 5156, Ductile Iron, DN50, RF

The EPDM Lined Diaphragm Valve, manufactured to Weir Type design and compliant with BS 5156 and MSS SP-88 standards, features a durable ductile iron body for long-lasting performance. Sized at DN50 (2 inches) and rated for PN16/Class 150 LB pressure, it is equipped with RF flanged ends for secure installation. The EPDM lining ensures excellent chemical resistance, making this valve ideal for handling aggressive fluids in industrial applications.

Product Name: EPDM Lined Diaphragm Valve
Type: Weir Type Diaphragm Valve
Design Standard: BS 5156, MSS SP-88
Body Material: Ductile Iron
Lining Material: EPDM Lined
Size: DN50, 2 Inch
Pressure: PN16, Class 150 LB
End Connection: RF

Weir Type Rubber Lined Diaphragm Valves are engineered to meet international standards, offering exceptional durability and performance. The unique design ensures that the flowing media does not contact the valve's working components, significantly extending the valve's service life. These valves feature a self-draining function, effectively preventing residue buildup and maintaining a cleaner and healthier pipeline system. Available in a variety of body materials, including cast iron, ductile iron, and cast steel, the valve can be lined with specialized materials such as Glass, ETFE, PFA, PVDF, or Halar rubber, which can be customized to meet specific application requirements.

Technical Specifications

» Size: 3/4-16 Inch (DN20-DN400)
» Pressure Rating: PN10, PN16, Class 125 LB, Class 150 LB
» Design & Manufacture: BS 5156-85, MSS SP-88, GB 12239-89

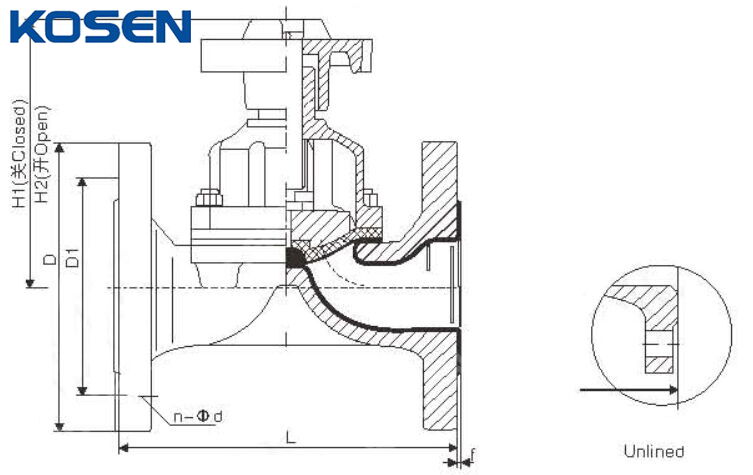

» Face to Face Dimension: BS 5156-85, ANSI B16.10, GB 12221-85, DIN 3202
» Flanged Dimension: BS, DIN PN10 & 16, JIS 10K, ANSI B16.5 Class 125 & 150
» Inspect & Test: BS 5156, MSS SP-82, GB/T 13927
» Face to Face: EN 558-1, BS 5156, DIN 3202 Series F1
» Material: Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel, Duplex Stainless Steel, ASTM A216 WCB, A351 CF8, CF8M
» Lining: Hard Rubber (Ebonite), Natural, Neoprene, Hypalon, Butyl, EPDM, FEP, PFA
» Diaphragms: Natural, Neoprene, Hypalon, Butyl, EPDM, Silicone, PTFE backed by Neoprene Rubber
» Stem or Spindle: AISI 410, 304, 316
» Operation: Handwheel, Pneumatic, Electric
» Temperature Range: -29°C to 150°C
» Handwheel: Ductile Iron, Aluminum Alloy

Main Material
