Ductile Iron Ball Valve, ASTM A395, 2 IN, 2000 PSI, 2PC, NPT

Product Name: 2 Piece Oilfield Ball Valve, Full Port
Body Material: Ductile Iron ASTM A395
Size: 2 Inch, DN50
Pressure: 2000 PSI
End Connection: NPT
Operation: Lever
Service: Oilfield

This is a specialized ball valve designed for oil field applications, comprising a ball valve body and a valve tube. The ball valve body is equipped with valve tubes on both the left and right sides. The right side of the inner cavity of the body features a second slide rail. A valve rod runs through the body of the ball valve, with a stable block installed at the top of the valve rod. A handwheel is securely fixed to the top of the stable block for operation, while a limit device is integrated within the inner cavity of the valve rod for precise control.

Technical Specifications

» Size Range: NPS 1-4 Inch (DN25-DN100)
» Pressure: 1000 PSI, 1500 PSI, 2000 PSI NSCWP
» Body and Bonnet Material: Ductile Iron ASTM A395
» Seat Material: RPTFE, DELRIN
» Ball and Stem Material: SS 420, SS 304, SS 316
» End Connections: ASME B1.20.1 (NPT), API 5B LP
» Inspection and Testing: API 598
» Temperature Range: -20°C to 120°C
» Medium: Water, Oil, Gas

Product Features

» Threaded Body Construction
» Adjustable Packing Gland
» Blow-out-Proof Stem
» Lockable Lever Handle
» Lever Operated, Threaded
» Floating Ball, 2000 W.O.G
» Fire Safe Design
» Rugged Locking Device
» Grease Fitting
» NACE MR-0175 Compliant
» Full Port or Reduced Bore Optional

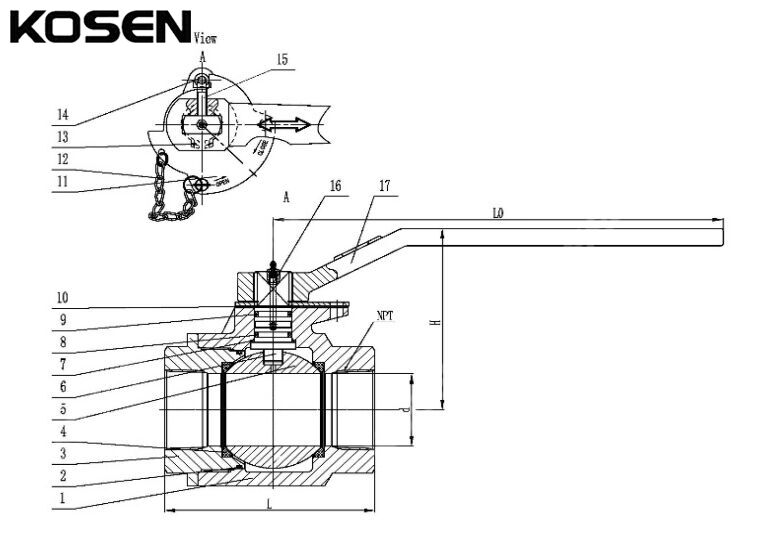

Materials of Main Parts

Main Dimensions (mm)
