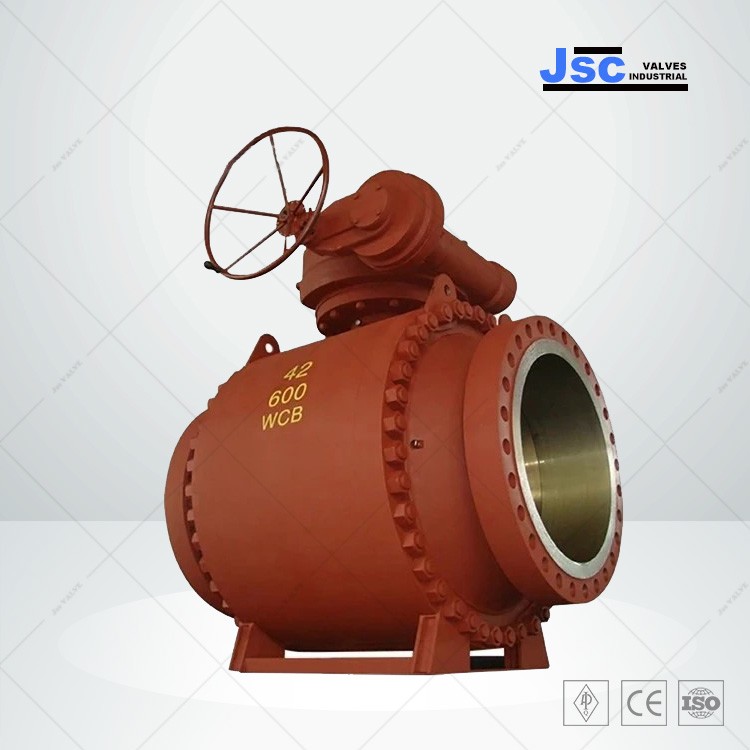

Cast Steel Trunnion Ball Valve, API 6D, WCB, DN500, PN40, RF

Product Name: Cast Steel Trunnion Ball Valve
Design Standard: API 6D
Body Material: ASTM A216 WCB
Size: DN500, 20 Inch
Pressure: PN40, Class 300 LB
End Connection: RF
Operation: Worm Gear

Trunnion Mounted Ball Valves are designed for easy and smooth operation at high line pressures. The carefully aligned bearings ensure low-torque operation, while the ball is fixed in position but free to rotate. All Cast Trunnion Ball Valves are built with reliable, high-quality castings and feature a fire-safe design, certified according to BS 6755, API 607, and API 6FA. These valves meet all applicable ASME standards. Available in Two-Piece Split Body and Three-Piece Bolted Body configurations, KOSEN's Cast Steel Trunnion Ball Valves are designed and manufactured in accordance with the latest international standards, including API 6D, ASME B16.34, BS 5351, or their equivalents. Standard features include fire safety, anti-static protection, and blow-out proof stem design.

Technical Specifications

» Size Range: NPS 2-48 Inch (DN50-DN1200)

» Design Pressure: Class 150-2500 LB (PN10-PN420)

» Materials: Cast Carbon Steel, Stainless Steel, Duplex, or Other Special Alloys (ASTM A216 WCB, WCC, A352 LCB, LCC, A351 CF8, CF8M, CF3, CF3M)

» Trim Materials: 13% Cr, SS 304, SS 304L, SS 316, SS 316L, and other specials

» Seat Materials: RPTFE, DEVLON, PEEK

» Ends Connections: Flanged RF, RTJ, Welded

» Operation: Handle, Worm Gear, Electric, Pneumatic

» Temperature Range: -46°C to 120°C

» Medium: Water, Gas, Oil, etc.

Standards for Trunnion Mounted Ball Valve

» Design and Manufacture: API 6D, BS 5351, ASME B16.34

» Face-to-Face Dimensions: ASME B16.10

» Flanged Connections: ASME B16.5, ASME B16.47

» Test and Inspection: API 598, API 6D

» Butt Welded End: ASME B16.25

» Fire Safety Standards: API 607, API 6A

Features of Trunnion Mounted Ball Valve

» Double Block and Bleed (DBB)

» Low Operating Torque

» Emergency Sealing Device

» Fireproof Structure Design

» Anti-static Structure

» Reliable Seat Sealing Structure

» Single Sealing (Automatic Pressure Relief in Middle Cavity)

» Double Sealing (Double Piston)

» Safety Relief Device

» Special Automatic Pressure Relief for Upstream

» Blow-out Proof Stem

» Corrosion and Sulfide Stress Resistance» Optional Locking Device or Stem Extension

» Optional Direct Mounting to ISO 5211

» Full Port or Reduce Bore
