ASTM B148 C95800 Y Strainer, ASME B16.34, 3 Inch, CL150, RF

The ASTM B148 C95800 Y Strainer is designed for efficient filtration in sea water applications. Made from a durable aluminum bronze body, it conforms to ASME B16.34 standards and features a duplex stainless steel screen for superior strength and corrosion resistance. Available in a 3-inch, DN80 size with a Class 150 LB, PN20 rating, this strainer effectively protects equipment from debris and contaminants.

Product Name: Y Type Strainer for Sea Water
Design Standard: ASME B16.34
Body Material: ASTM B148 C95800
Screen Material: Duplex Stainless Steel
Size: 3 Inch, DN80
Pressure: Class 150 LB, PN20
End Connection: RF Flanged

The Y-type strainer is a crucial piece of high-efficiency filtration equipment in purification systems, playing an essential role in the treatment of both domestic and industrial wastewater. Thanks to its innovative design and versatile applications, Y-type strainers are widely preferred in various industries. These strainers have proven effective in treating substantial amounts of wastewater, allowing valuable water resources to be reused and helping conserve water.
Key advantages of Y-type strainers include full automation, maintenance-free operation, a large filtration area, high filtration efficiency, and long service life. Constructed from durable stainless steel, they offer optional filtration accuracy and come in a range of specifications to suit different needs. Compared to other filtration solutions, Y-type strainers are highly effective, ensuring treated water meets national discharge standards while facilitating water reuse, making them an indispensable choice for wastewater treatment and water resource management.

Technical Specification

» Normal Size Range: 1/2-24 Inch (DN15-DN600)
» Normal Pressure Rating: PN16-PN420, Class 150-2500 LB
» Material: ASTM B148 C95800,C95400, B62 C83600
» Filtering Accuracy:
   18-30 mesh for water filter
   10-100 mesh for air filter
   100-480 mesh for oil filter
» Temperature Range: -29°C to +425°C
» End Connections: RF, RTJ, BW
» Medium: Steam, high-temperature steam, gas, oil

Standards Compliance

» Design and Manufacture: ANSI B16.34, API 600, API 6D
» Face to Face (End to End): ANSI B16.10, API 6D
» Flanged Connection: 2-24 Inch to ANSI B16.5
» Test and Inspection: API 598, API 6D
» Butt Welded End: ANSI B16.5

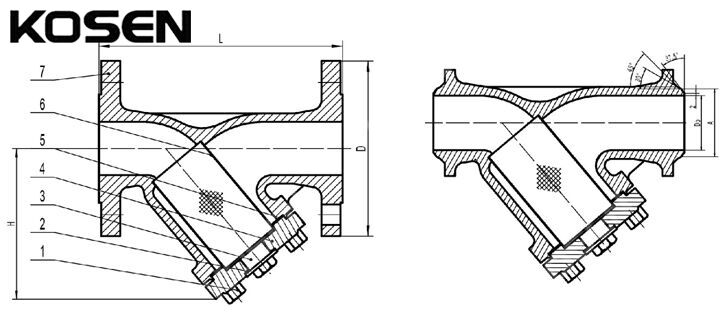

Material for Main Parts
