ASTM A351 CF8 Globe Valve, ASME B16.34, 4 Inch, 150 LB, OS&Y

Product Name: ASTM A351 CF8 Globe Valve
Features: OS&Y, Bolted Bonnet, Rising Stem
Design Standard: ASME B16.34
Body Material: ASTM A351 CF8
Size: 4 Inch, DN100
Pressure: Class 150 LB, PN20
End Connection: RF Flanged
Operation: Manual

Cast Steel Globe Valves are designed and manufactured to ensure leakage of less than 100 ppm (parts per million) of volatile organic compounds (VOCs). Extensive baseline laboratory testing, including static and cycle testing, has been conducted to establish the critical design parameters required for achieving low-emission sealing in the stem packing seal area and the bonnet gasket sealing area. An in-house testing procedure has been developed and is periodically performed to ensure that the standard product design and manufacturing criteria consistently result in Cast Steel Globe Valves meeting the maximum 100 ppm VOC leakage limit prior to shipment.

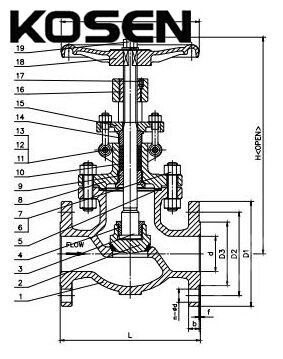

Technical Specifications

» Nominal Diameter: NPS 1/2–24 Inch (DN15–DN600)
» Design Pressure: Class 150–2500 LB (PN10–PN420)
» Materials: ASTM A216 WCB, WCC, A217 WC6, WC9, C5, C12A, A352 LCB, LCC, A351 CF8, CF8M, CF3M, CF8C, CN3MN, CK3MCUN, CN7M, A890 4A (CD3MN), 5A (CE3MN), 6A (CD3MWCuN), B148 C95800, C95500
» End Connections: Flanged (FF, RF, RTJ) and BW to international standards
» Operation: Handwheel, bevel gear, electric, pneumatic
» Applications: Electric power, petroleum refining, petrochemical engineering, offshore oil, urban water engineering, chemical engineering
» Design and Manufacture: ASME B16.34, BS 1873, DIN 3356
» Face to Face (End to End): ANSI B16.10, EN 558 series
» Flanged Connection: ANSI B16.5, EN 1092 series
» Butt Welded End: ANSI B16.25
» Test and Inspection: API 598, ISO 5208, EN 12266-1
» Temperature Range: -29°C to 595°C
» Medium: Water, gas, oil, and other fluids

Product Features

» OS&Y Design: Outside Stem and Yoke, bolted bonnet, rising stem.
» Short Stroke: For easy and quick open/close operation.
» High-Pressure Relief: For big size and high pressure, the relief cone serves as an internal bypass.
» Disc Sealing Options: Available with flat sealing or throttle cone (regulating disc).
» Body Seat Options: Available with a threaded seat or welded seat.
» Metal-Sealed: Available in various API trims (#1, #5, #8, #10, etc.).
» Optional Features: Optional locking device or stem extension.
» ISO 5211 Compatibility: Optional direct mounting to ISO 5211.
» Reduced Port Size: Optimizes flow and efficiency.
