ASME B16.34 Y Strainers, WCB, SS 316 Screen, 4 Inch, 150 LB

The ASME B16.34 Y Strainers feature an ASTM A216 WCB body and SS 316 screen for enhanced corrosion resistance and durability. With a 4-inch (DN100) size, Class 150 LB, and PN20 pressure rating, they are designed for medium-pressure applications. The strainer offers a filtering accuracy of 40 mesh, ensuring effective filtration. The pipe strainer is equipped with RF (Raised Face) ends.

Product Name: ASME B16.34 Y Strainer
Design Standard: ASME B16.34
Body Material: ASTM A216 WCB
Screen Material: SS 316
Filtering Accuracy: 40 Mesh
Size: 4 Inch, DN100
Pressure: Class 150 LB, PN20
End Connection: RF Flanged

Y-type strainers are essential filtration devices used in wastewater treatment, particularly in domestic and industrial settings. They play a crucial role in efficiently filtering out impurities, promoting the reuse of valuable water resources, and contributing significantly to water conservation efforts. Known for their design versatility and high performance, Y-type strainers have become a popular choice in various industries for their durability, maintenance-free operation, and efficiency in filtering water, oil, gas, and steam.

Y-type Strainer Key Advantages

» Full Automation: Ensures consistent, hands-off operation.
» Maintenance-Free: Low upkeep requirements, reducing downtime.
» Large Filtration Area: Improves filtration efficiency.
» High Filtration Efficiency: Capable of achieving high-quality filtered outputs.
» Long Service Life: Durable and reliable for extended use.
» Stainless Steel Material: Enhances resistance to corrosion and wear.
» Customizable Filtration Accuracy: Selectable mesh sizes for various applications (water, air, oil).
» Comprehensive Specifications: Suitable for a wide range of flow mediums.

Technical Specifications

» Size Range: 1/2-24 Inch (DN15 to DN600)
» Pressure Rating: PN16-PN420, Class 150-2500 LB
» Materials: ASTM A216 WCB, A351 CF8, CF8M, CF3, CF3M, A350 LF2, A217 WC6, WC9
» Filtration Accuracy:
   18–30 mesh (water filter)
   10–100 mesh (air filter)
   100–480 mesh (oil filter)
» Temperature Range: -29°C to +425°C
» Ends Connections: RF, RTJ, BW
» Medium: Steam, high-temperature steam, gas, oil

Standards Compliance

» Design and Manufacture: ANSI B16.34, API 6D
» Face to Face (End to End): ANSI B16.10, API 6D
» Flanged Connection: 2-24 Inch per ANSI B16.5
» Test and Inspection: API 598, API 6D
» Butt Welded End: ANSI B16.5

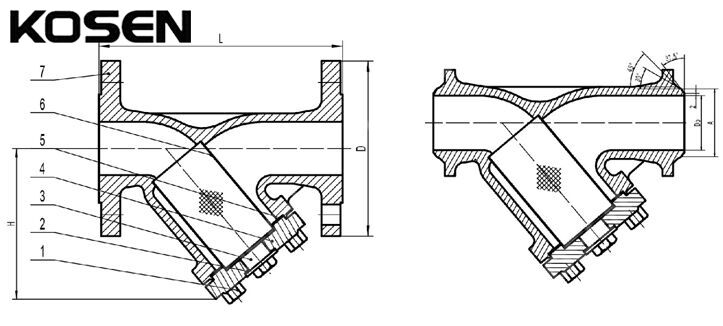

Material for Main Parts
