ASTM A216 WCB Y Strainer, ASME B16.34, SS 304 Screen, 3 Inch

The ASTM A216 WCB Y Strainer, manufactured to ASME B16.34 standards, features a carbon steel body and a SS 304 screen for excellent corrosion resistance. With a 3-inch (DN80) size, Class 150 LB, and PN20 pressure rating, it is designed for medium-pressure applications. The strainer is equipped with RF flanged ends for secure connections, ensuring reliable filtration in industrial systems.

Product Name: ASTM A216 WCB Y Strainer
Design Standard: ASME B16.34
Body Material: ASTM A216 WCB
Screen Material: SS 304
Size: 3 Inch, DN80
Pressure: Class 150 LB, PN20
End Connection: RF Flanged

Y-type strainers are essential, high-efficiency filtration equipment in purification systems, playing a crucial role in treating both domestic and industrial wastewater. They are widely favored for their design and application advantages. These strainers have successfully treated large volumes of wastewater across various industries, enabling effective reuse of valuable water resources and contributing to significant water conservation.

Key benefits of Y-type strainers include full automation, low maintenance, a large filtration area, high efficiency, long service life, and stainless steel construction. They offer customizable filtration accuracy and a wide range of specifications. Compared to other filtration equipment, Y-type strainers are among the most effective solutions in engineering. The treated water not only meets national discharge standards but also supports water reuse.


Technical Specifications

» Size Range: 1/2-24 Inch (DN15 to DN600)
» Pressure Rating: PN16-PN420, Class 150-2500 LB
» Materials: ASTM A216 WCB, A351 CF8, CF8M, CF3, CF3M, A350 LF2, A217 WC6, WC9
» Filtration Accuracy:
   18–30 mesh (water filter)
   10–100 mesh (air filter)
   100–480 mesh (oil filter)
» Temperature Range: -29°C to +425°C
» Ends Connections: RF, RTJ, BW
» Medium: Steam, high-temperature steam, gas, oil

Standards Compliance

» Design and Manufacture: ANSI B16.34, API 6D
» Face to Face (End to End): ANSI B16.10, API 6D
» Flanged Connection: 2-24 Inch per ANSI B16.5
» Test and Inspection: API 598, API 6D
» Butt Welded End: ANSI B16.5

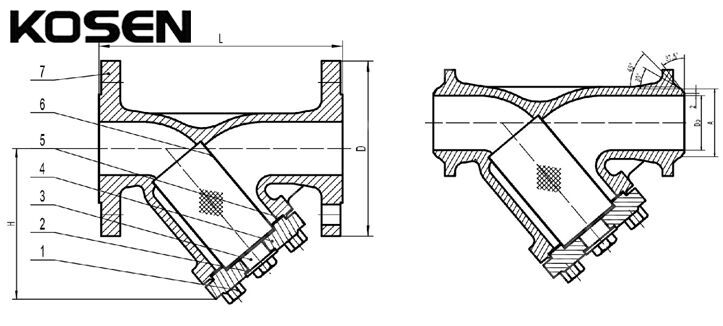

Material for Main Parts
