API 6D Trunnion Ball Valves, ASTM A216 WCB, 4 IN, CL600, RF

Name: API 6D Trunnion Ball Valves, ASTM A216 WCB, 4 IN, CL600, RF
SKU: KV-20250210-TMBV-01
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

The API 6D Trunnion Mounted Ball Valve, crafted from carbon steel ASTM A216 WCB, is designed for superior performance and durability. With a 4-inch size (DN100) and a Class 600 LB pressure rating (PN100), this valve is built to handle high-pressure applications. It features RF flanged ends for easy integration into piping systems, ensuring secure and efficient operation.

Request a quote

Detail Information

Product Name: API 6D Trunnion Mounted Ball Valve
Design Standard: API 6D
Body Material: ASTM A216 WCB
Size: 4 Inch, DN100
Pressure: Class 600 LB, PN100
End Connection: RF
Operation: Gearbox

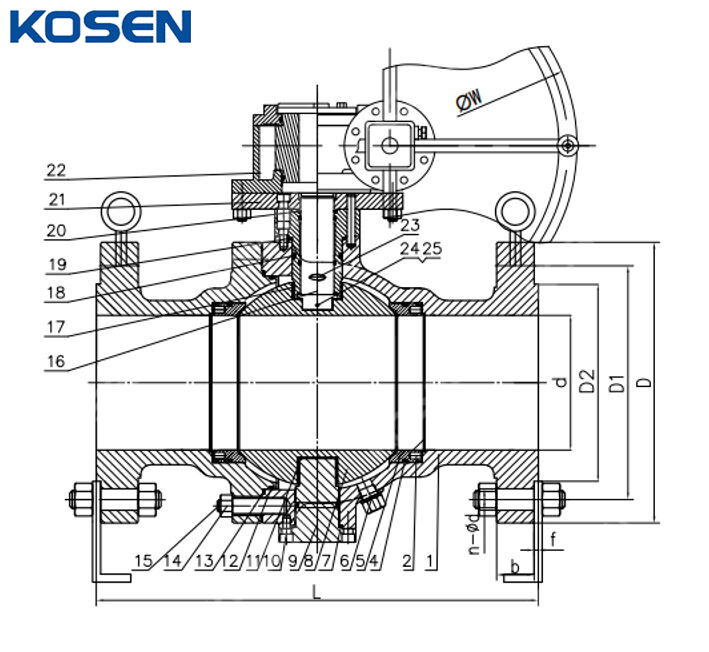

Trunnion Mounted Ball Valves are designed for smooth operation under high line pressure. The ball is fixed in position yet free to rotate, with carefully aligned bearings ensuring low torque operation.
All Cast Trunnion Ball Valves are crafted from high-quality castings and feature a fire-safe design, certified according to BS 6755, API 607, and API 6FA, meeting all applicable ASME standards.
Cast Steel Trunnion Ball Valves are available in Two-Piece Split Body and Three-Piece Bolted Body types. They are designed and manufactured to the latest international standards, including API 6D, ASME B16.34, BS 5351, or equivalents. Standard features include Fire-Safe, Anti-Static, and Stem Blow-out Proof design.

Technical Specifications

» Size Range: NPS 2-48 Inch (DN50-DN1200)
» Design Pressure: Class 150-2500 LB (PN10-PN420)
» Materials: Cast Carbon Steel, Stainless Steel, Duplex Steel, ASTM A216 WCB, WCC, A352 LCB, LCC, A351 CF8, CF8M, CF3, CF3M
» Trim Materials: 13% Cr, SS 304, SS 304L, SS 316, SS 316L
» Seat Materials: RPTFE, DEVLON, PEEK
» End Connections: Flanged RF, RTJ, Welded
» Operation: Handle, Worm Gear, Electric, Pneumatic
» Temperature Range: -46°C to 120°C
» Medium: Water, Gas, Oil, etc.
» Design and Manufacture: API 6D, BS 5351, ASME B16.34
» Face-to-Face (End-to-End): ASME B16.10
» Flanged Connections: ASME B16.5, ASME B16.47
» Test and Inspection: API 598, API 6D
» Butt Welded End: ASME B16.25
» Fire Safety: API 607, API 6A

Product Features

» Double Block and Bleed (DBB)
» Low Operating Torque
» Emergency Sealing Device
» Fireproof Structure Design
» Anti-static Structure
» Reliable Seat Sealing
» Single Sealing (Automatic Pressure Relief in Middle Cavity)
» Double Sealing (Double Piston)
» Safety Relief Device
» Automatic Pressure Relief for Upstream
» Blow-out Proof Stem
» Corrosion & Sulfide Stress Resistance
» Optional Locking Device or Stem Extension
» ISO 5211 Direct Mounting Option
» Full Port or Reduced Bore
