API 6D Trunnion Mounted Ball Valves, A351 CF8M, 2 IN, 300 LB
Model Number: Kelly-BV-20240802-03
Key Specifications / Features
The 2 Inch Class 300 LB trunnion mounted ball valve is manufactured in compliance with the API 6D standard. Constructed from ASTM A351 CF8M, this valve features a full bore design with a fixed ball for optimal performance. It includes safety enhancements such as anti-fire, anti-static, and anti-blowout valve stem features. The connection type is raised face (RF), and it is operated via a lever mechanism, ensuring reliable and easy handling.
Detail Information
Trunnion Mounted Ball Valve, API 6D, ASTM A351 CF8M Body, 2 Inch, 300 LB, RF Connection, Lever.
2. Low Operating Torque: The stationary ball design results in relatively low operating torque, making it particularly suitable for large-diameter and high-pressure applications, and facilitating easier manual or automated operation.
Features
1. Bidirectional Sealing: The fixed ball valve design allows medium flow in both directions, ensuring reliable bidirectional sealing and preventing reverse flow.2. Low Operating Torque: The stationary ball design results in relatively low operating torque, making it particularly suitable for large-diameter and high-pressure applications, and facilitating easier manual or automated operation.
Technical Drawing

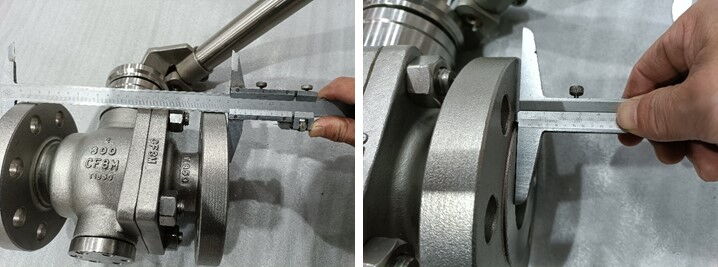

Dimension Checking

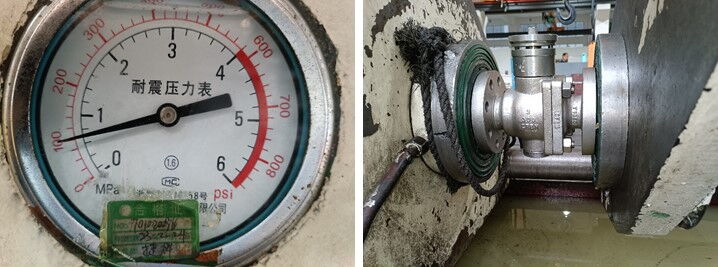

Pressure Testing

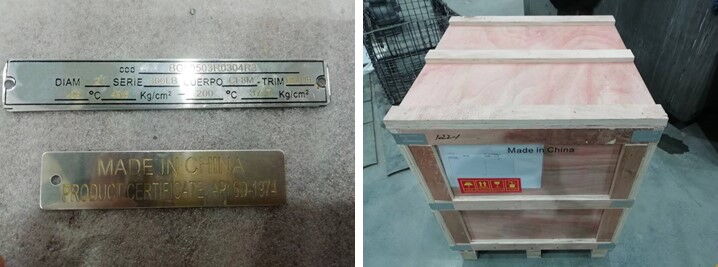

Nameplate & Packing
Inspection Report
