GGG50 Ductile Iron Gate Valve, DN125, PN16, DIN, RF
Model Number: Kelly-GTV-20240802-04
Key Specifications / Features
The DN125 PN16 ductile iron gate valve is manufactured according to DIN standards, featuring a GGG50 valve body. This valve incorporates an F4 drinking water soft seat design and has a structural length of 200 mm. The connection type is raised face (RF), and it operates with a handwheel, providing reliable and efficient control for various applications.
Detail Information
GGG50 Gate Valve, Ductile Iron, DN125, PN16, DIN Standard, RF Connection.
2. Versatile Compatibility: These valves are compatible with various pipe connections and can be equipped with different types of actuators for automated operation.
Features
1. Reliable and Tight Sealing: Ductile iron gate valves offer dependable and tight sealing, ensuring minimal leakage and maintaining system integrity even under high-pressure conditions.2. Versatile Compatibility: These valves are compatible with various pipe connections and can be equipped with different types of actuators for automated operation.

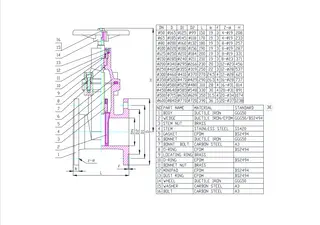

Technical Drawing

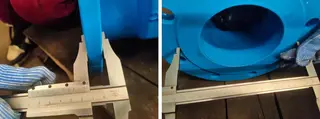

Dimension Checking

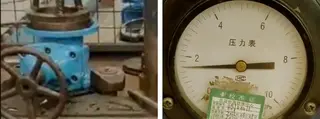

Pressure Testing

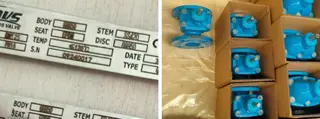

Nameplate & Packing

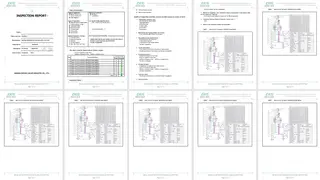

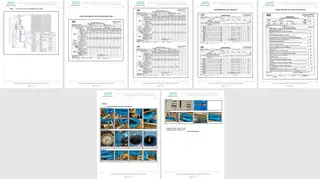

Inspection Report
