BS 1873 Globe Valve, DSS ASTM A995 4A, 6 IN, CL 150 LB, RF
Model Number: Kelly-GV-20240802-02
Key Specifications / Features
The 6-inch, Class 150 LB cast steel globe valve is manufactured in accordance with the BS 1873 standard. The valve body is constructed from ASTM A995 4A, featuring a straight-through design with a plug-type disc and a replaceable disc. It includes a bonnet, rising stem, and an integral backseat. The connection type is RF (raised face), and it operates via a handwheel.
Detail Information
BS 1873 Cast Steel Globe Valve, 6 Inch/DN150, 150 LB, ASTM A995 4A Body, RF Connection.
2. Efficient Design and Materials: Incorporates a low operating torque, facilitating both manual and automated operation.
Features
1. Optimized Structural Design: Ensures easy disassembly, flexible installation, and straightforward maintenance.2. Efficient Design and Materials: Incorporates a low operating torque, facilitating both manual and automated operation.

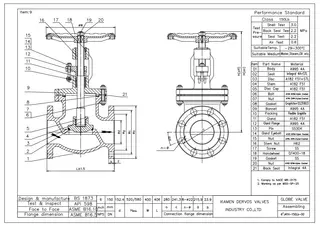

Technical Drawing

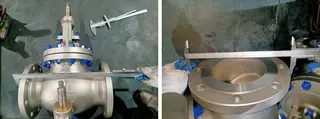

Dimension Checking

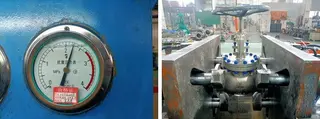

Pressure Testing

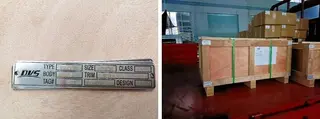

Nameplate & Packing

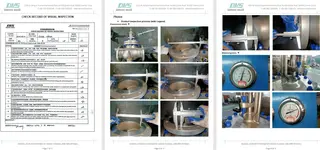

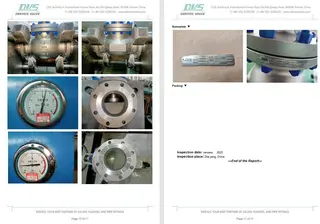

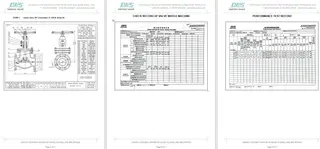

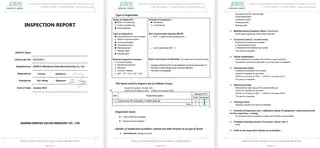

Inspection Report
