Full-Servo I-Type Elastic Waistband Baby Diaper Machine
Key Specifications / Features
Discover our I-Type Elastic Waistband Baby Diaper Machine, a full-servo system capable of producing 600 pieces per minute. Equipped with tension unwinding and constant tension control with a buffer system for smooth operation.
Request a quote
Detail Information
Full-Servo I-Type Elastic Waistband Baby Diaper Machine
| Subject | Parameter |
| Overall size(L*W*H) | 28M*8M*5M(For reference only) |
| Machine size(L*W*H) | 36m*12m*8m,based on the product provided by client |
| Design speed | 600pcs/min |
| Stable speed | 500pcs/min |
| Pass percentage | 98% |
| Work efficiency | 90% |
| Power source | 380V,50HZ,(3phase,4lines+ground wire) |
| Machine capacity | about 300KW |
| Air pressure | 0.6-0.8Mpa |
| Machine weight | About 80T |
| Machine color | Customized |
Configuration:

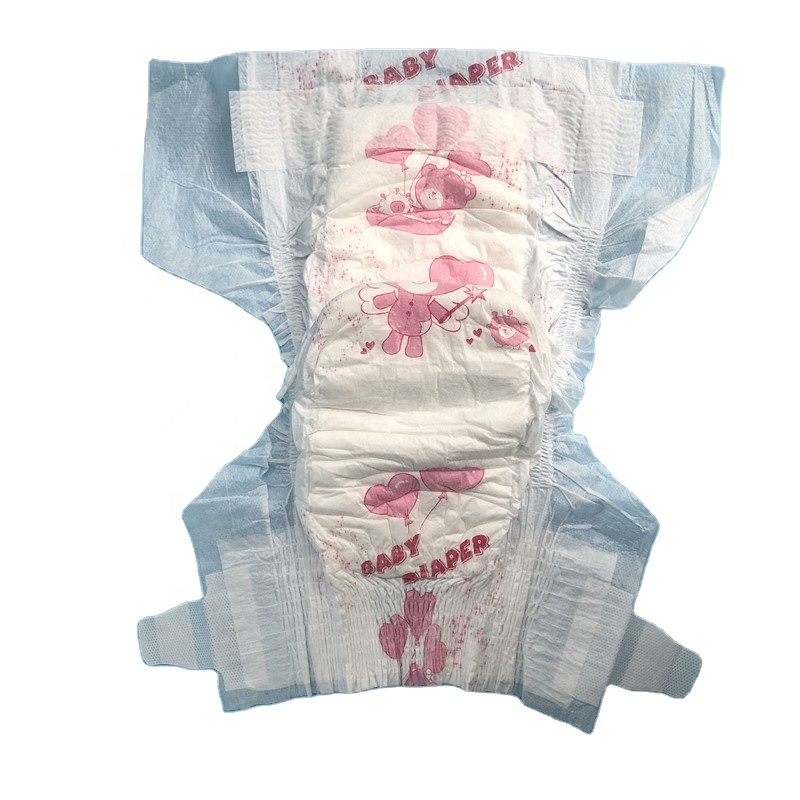

Product Components:
Fluff Core with Up & Down Tissue (incorporating SAP), ADL Layer, Backsheet, Frontal Tape, Topsheet, Leg Cuff Nonwoven, Side Tapes, Waistband.
Product Sizes:
Small (S): 390 x 280 mm
Medium (M): 450 x 320 mm
Large (L): 500 x 320 mm
Extra Large (XL): 525 x 330 mm
Control System:
PLC control with a touchscreen interface
LED digital display for pattern-based production control
Tension System:
A&B shaft active unwinding powered by inverter motors for Tissue, ADL, Backsheet, Topsheet, and Cuff Nonwoven.
Drive System:
Full servo drive,digital size change,ensure run synchronized at full process. The frontal tape and back sheet using servo positioning cutting to ensure pattern consistent with the phase.
Safety Features:
Safety devices and an emergency stop switch on the operating side
High-performance fan with sound insulation or a silencer
Packing Options:
Stacker available upon client's request
Material Alignment System:
Optional German BST automatic web guide system for precise material alignment.
Main Product Lines:
- Baby Diaper Production Line (Includes I & T shape diaper, Baby pants, Full Elastic waistband diaper)
- Adult Diaper Production Line (Includes Adult diaper, Adult pants)
- Sanitary Napkin & Panty Liner Production Line
- Menstruation Panty Production Line
- Under Pad Production Line
- Disposable Breast Pad Production Line
