Semi-Servo Adult Diaper Production Line, 300 Pieces/Min
Key Specifications / Features
Explore our Semi-Servo Adult Diaper Production Line, designed for a speed of 300 pieces per minute with a high pass percentage of 98%. Additionally, it comes with the option to equip the Germany BST Automatic Web Guide System for precision.
Request a quote
Detail Information

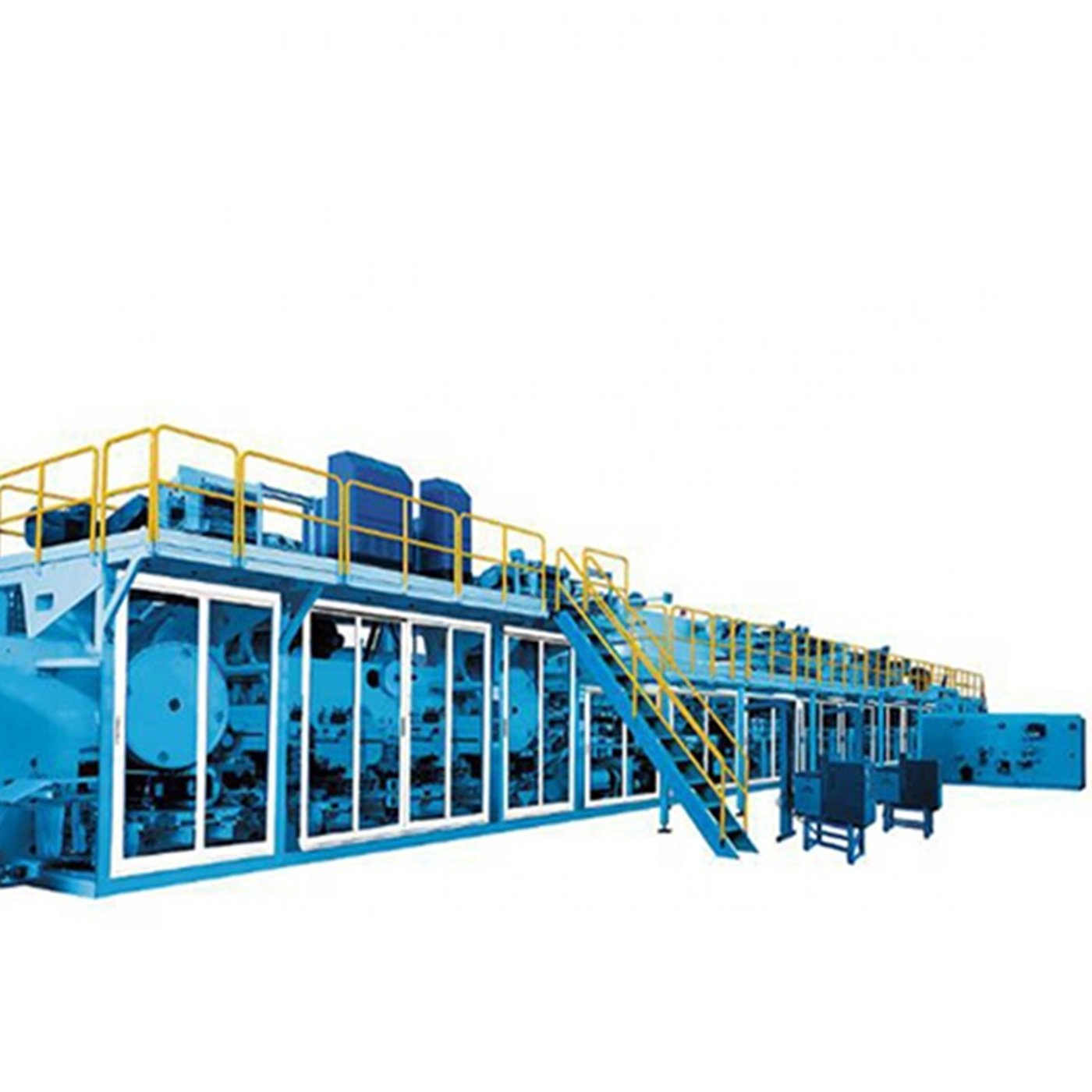

Semi-Servo Adult Diaper Production Line
| Subject | Parameter |
| Overall size(L*W*H) | 24M*4M*3.6M(For reference only) |
| Machine size(L*W*H) | 22m*2.1m*3.3m,based on the product provided by client |
| Design speed | 300pcs/min |
| Stable speed | 160pcs/min |
| Pass percentage | 98% |
| Work efficiency | 85%-90% |
| Power source | 380V,50HZ,(3phase,4lines+ground wire) |
| Machine capacity | about 400KW |
| Air pressure | 0.6-0.8Mpa |
| Machine weight | About 95T |
| Machine color | Customized |
Configuration:
Product Components:

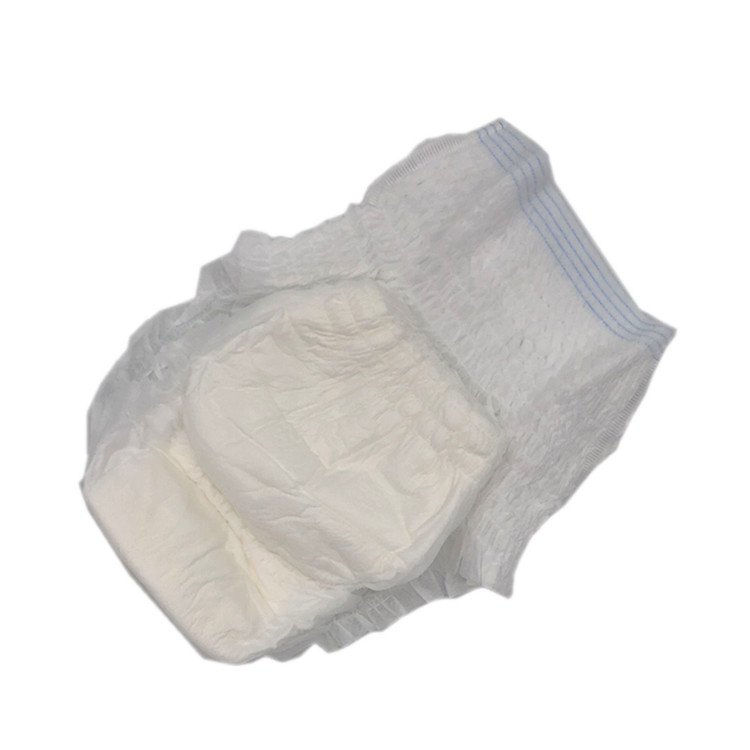

Fluff Core with Up & Down Tissue (incorporating SAP), ADL Layer, Backsheet, Frontal Tape, Topsheet, Leg Cuff Nonwoven, Side Tapes, Waistband.
Product Sizes:
Small (S): 390 x 280 mm
Medium (M): 450 x 320 mm
Large (L): 500 x 320 mm
Extra Large (XL): 525 x 330 mm
Control System:
PLC control with a touchscreen interface
LED digital display for pattern-based production control
Tension System:
A&B shaft active unwinding powered by inverter motors for Tissue, ADL, Backsheet, Topsheet, and Cuff Nonwoven.
Drive System:
Full automatic, semi servo,full servo can be choose by customer's requirements
Safety Features:
Safety devices and an emergency stop switch on the operating side
High-performance fan with sound insulation or a silencer
Packing Options:
Stacker available upon client's request
Material Alignment System:
Optional German BST automatic web guide system for precise material alignment.
Main Product Lines:
- Baby Diaper Production Line (Includes I & T shape diaper, Baby pants, Full Elastic waistband diaper)
- Adult Diaper Production Line (Includes Adult diaper, Adult pants)
- Sanitary Napkin & Panty Liner Production Line
- Menstruation Panty Production Line
- Under Pad Production Line
- Disposable Breast Pad Production Line
