LED Panel Lights 600×600 mm Triac dimmable,DALI dimmable, 0-10v dimmable
Model Number: PNL2835-600x600-W
Key Specifications / Features
36W/42W/45W LED Panel Lights 600×600mm, Triac dimmable, DALI Dimming, 0-10v dimming. 2835 SMD LED,UGR<19 available. 3-Year warranty. 80% less power consumption than incandescent light or 50% than T8 or T5 fluorescent light.
Detail Information
UGR<19 available
Various dimming available: Triac dimmable, DALI Dimming, 0-10V dimming

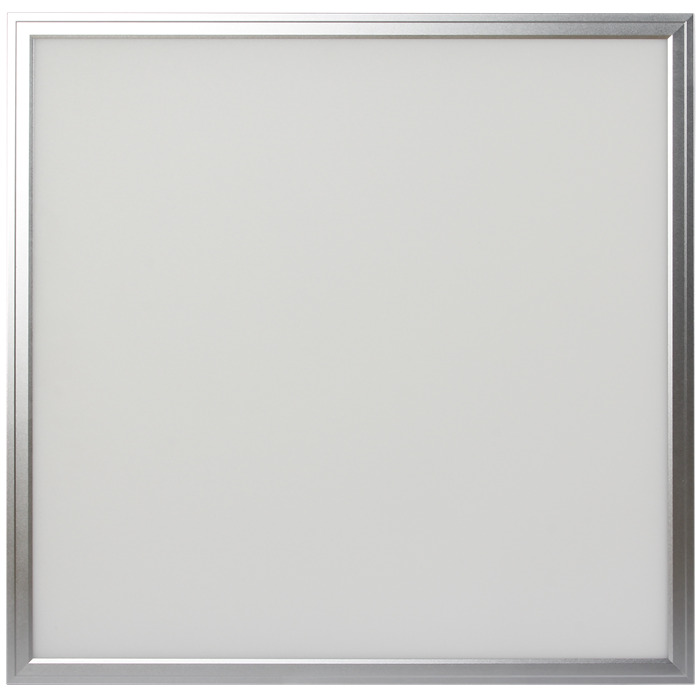

2x2 Flat LED panel light
2835/3014 SMD LED, Super bright
Aluminum alloy shell
Acrylic light-guide board made by Mitsubishi in Japan
Much lower surface temperature than fluorescent T8 or T5
Even and Soft light beam, without the feeling of dazzling, greatly reduced the harm to eyes
Long life span: normally over 50,000 hours
Environmental friendly: it saves over 80% power consumption than incandescent light or 50% than T8 or T5 fluorescent light
Solid-state, high shock or vibration resistant
No flickering. No UV or IR radiation
Compliant with CE, Rohs and UL certificates
3-year Warranty
Technical Descriptions:
Panel Size: 595×595x10mm
LED type: SMD LED
Emitting Colors available: White, Warm white, Nature white
Power: 36W
Operating voltage: DC24V or Constant current
Light-emitting angle: 120 degree
Life: 50000 hours

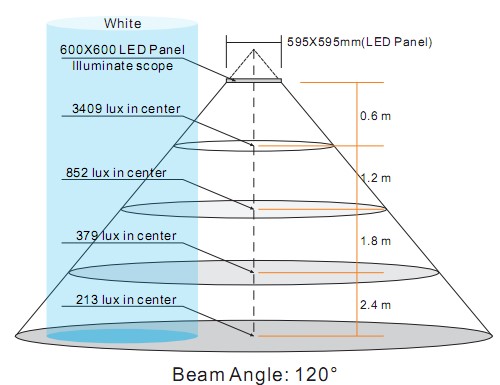

illumination-cone-curve-of-frameless-led-panel-light

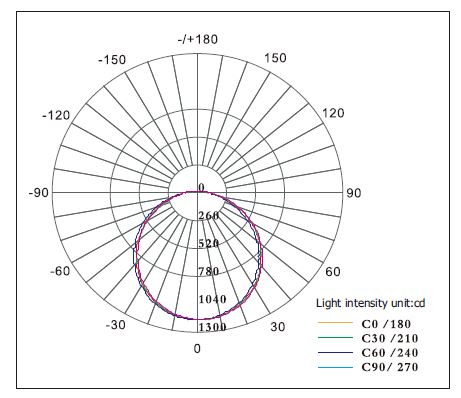

light-distribution-graph-of-frameless-led-panel-light
Third Generation:
LED Lumen Attenuation:

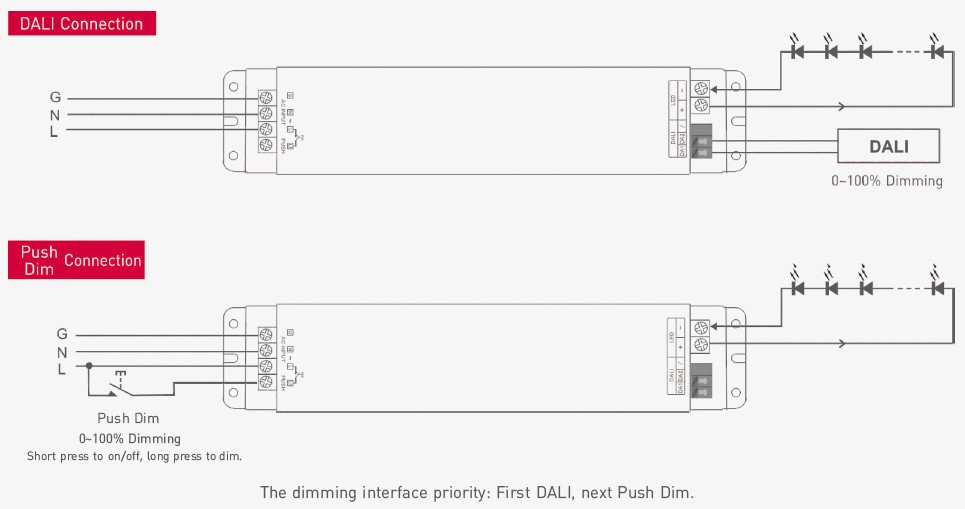

DALI Dimming
PWM digital dimming, standard DALI logarithmic dimming curve.
High frequency PWM dimming, no flicker in video camera.
Dimming range from 0-100%, LED start at 0.1% possible.
Dimming driver Power factor > 0.99, Efficiency > 93%.
Short circuit / Over-temperature / Over load / Over voltage protection.
DALI bus standard: IEC62386-101, 102, 207.
Compliant with Safety Extra Low Voltage standard.
Suitable for indoor environments.

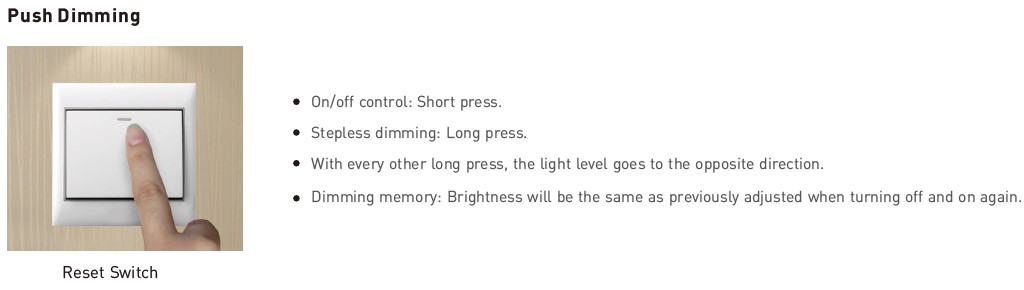

DALI, Push Dim.

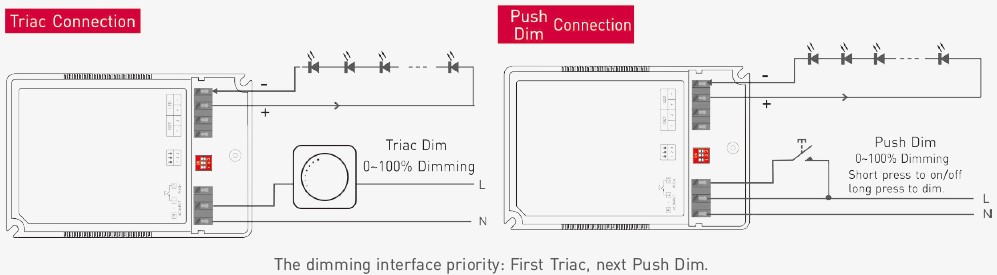

TRIAC Dimming
Dimming interface: Tricac/ELV, Push DIM
Apply to leading edge and trailing edge TRIAC dimmers
PWM digital dimming, no alter LED color rendering index.
Dimming range: 0~100%, LED start at 0.1% possible.
Short circuit / Over-temperature / Over load / Non-load protection.
Non-load output voltage 0V to prevent damages to LED caused by poor contact.
Class 2 power supply. Full protective plastic housing.
Compliant with Safety Extra Low Voltage standard.
Suitable for indoor environments.

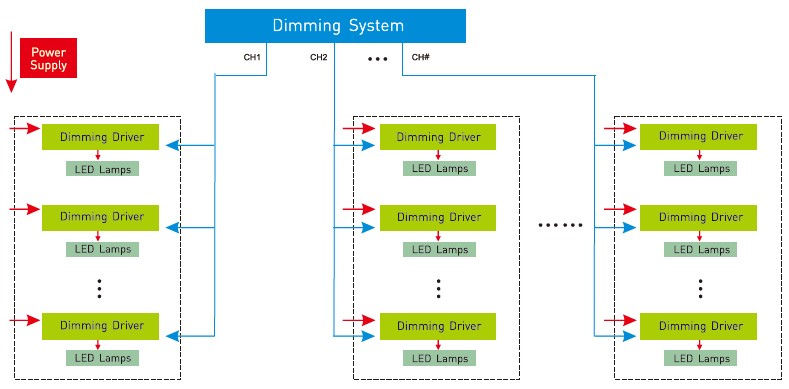

0-10V Dimming
Dimming interface: 0-10V, 1-10V, 10V PWM or Push button
PWM digital dimming, no alter LED color rendering index.
Dimming range: 0~100%, LED start at 0.1% possible.
Short circuit / Over-temperature / Over load / Non-load protection.
Class 2 power supply. Full protective plastic housing.
Suitable for indoor environments.
Typical mounting means:
1. Embedded or recessed installation

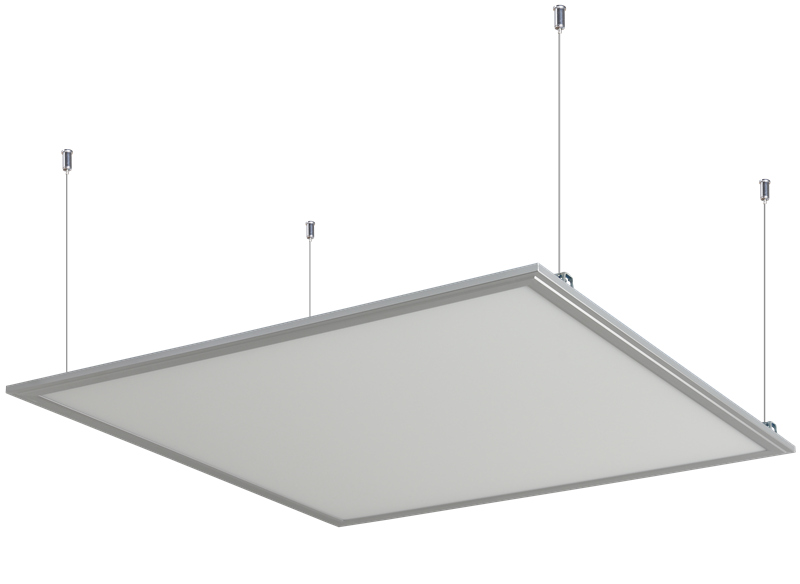

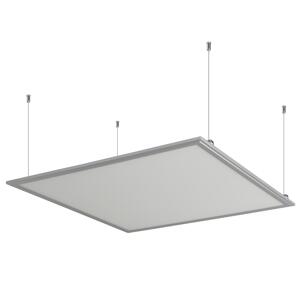

2. Suspension installation: hanging by steel rope
3. Surface mounting or Wall mounting
-Please check detail guide in the PDF file.
Packaging:
Outer carton: 77*68*36CM
Quantity: 5 units
Net weight: 3.9KG/unit
Gross weight: 27KG/carton
Applications:
Direct replacement of traditional T8 fluorescent light or Phillip Grille light; can be hanged from the roof or mounted into roof or wall or surfaces of any other objects.
Widely used in commercial or home indoor lighting such as supermarket, conference room, exhibition hall, hotel, office, etc..
Various dimming available: Triac dimmable, DALI Dimming, 0-10V dimming
2x2 Flat LED panel light
2835/3014 SMD LED, Super bright
Aluminum alloy shell
Acrylic light-guide board made by Mitsubishi in Japan
Much lower surface temperature than fluorescent T8 or T5
Even and Soft light beam, without the feeling of dazzling, greatly reduced the harm to eyes
Long life span: normally over 50,000 hours
Environmental friendly: it saves over 80% power consumption than incandescent light or 50% than T8 or T5 fluorescent light
Solid-state, high shock or vibration resistant
No flickering. No UV or IR radiation
Compliant with CE, Rohs and UL certificates
3-year Warranty
Technical Descriptions:
Panel Size: 595×595x10mm
LED type: SMD LED
Emitting Colors available: White, Warm white, Nature white
Power: 36W
Operating voltage: DC24V or Constant current
Light-emitting angle: 120 degree
Life: 50000 hours
illumination-cone-curve-of-frameless-led-panel-light
light-distribution-graph-of-frameless-led-panel-light
Third Generation:
| Model | Color | Size (mm) |
Voltage | Power (W) |
Lumens (LM) |
|
| PNL2835-600x600-36-W/WW/NW | 2700-6500K | 595*595*10 | Constant Current | 36W | 4320 | |
| PNL2835-620x620-36-W/WW/NW | 2700-6500K | 620*620*10 | Constant Current | 36W | 4320 |
LED Lumen Attenuation:
| Operating time(hours) | Lumen decrease (%) |
| 5,000 | 2.3 |
| 10,000 | 5.4 |
| 20,000 | 11.5 |
| 50,000 | 25.2 |
DALI Dimming
PWM digital dimming, standard DALI logarithmic dimming curve.
High frequency PWM dimming, no flicker in video camera.
Dimming range from 0-100%, LED start at 0.1% possible.
Dimming driver Power factor > 0.99, Efficiency > 93%.
Short circuit / Over-temperature / Over load / Over voltage protection.
DALI bus standard: IEC62386-101, 102, 207.
Compliant with Safety Extra Low Voltage standard.
Suitable for indoor environments.
DALI, Push Dim.
TRIAC Dimming
Dimming interface: Tricac/ELV, Push DIM
Apply to leading edge and trailing edge TRIAC dimmers
PWM digital dimming, no alter LED color rendering index.
Dimming range: 0~100%, LED start at 0.1% possible.
Short circuit / Over-temperature / Over load / Non-load protection.
Non-load output voltage 0V to prevent damages to LED caused by poor contact.
Class 2 power supply. Full protective plastic housing.
Compliant with Safety Extra Low Voltage standard.
Suitable for indoor environments.
0-10V Dimming
Dimming interface: 0-10V, 1-10V, 10V PWM or Push button
PWM digital dimming, no alter LED color rendering index.
Dimming range: 0~100%, LED start at 0.1% possible.
Short circuit / Over-temperature / Over load / Non-load protection.
Class 2 power supply. Full protective plastic housing.
Suitable for indoor environments.
1. Embedded or recessed installation
2. Suspension installation: hanging by steel rope
3. Surface mounting or Wall mounting
-Please check detail guide in the PDF file.
Packaging:
Outer carton: 77*68*36CM
Quantity: 5 units
Net weight: 3.9KG/unit
Gross weight: 27KG/carton
Applications:
Direct replacement of traditional T8 fluorescent light or Phillip Grille light; can be hanged from the roof or mounted into roof or wall or surfaces of any other objects.
Widely used in commercial or home indoor lighting such as supermarket, conference room, exhibition hall, hotel, office, etc..
