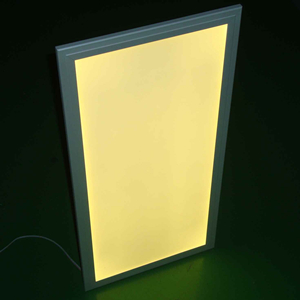

LED Panel Lights 600×300 mm Triac dimmable, DALI Dimming, 0-10V dimming

UGR<19 available, Triac dimmable, DALI Dimmable, 0-10V dimmable



2835/3014 SMD LED, Super bright
Aluminum alloy shell
Acrylic light-guide board made by Mitsubishi in Japan
Much lower surface temperature than fluorescent T8 or T5
Even and Soft light beam, without the feeling of dazzling, greatly reduced the harm to eyes
Long life span: normally over 50,000 hours
Environmental friendly: it saves over 80% power consumption than incandescent light or 50% than T8 or T5 fluorescent light
Solid-state, high shock or vibration resistant
No flickering. No UV or IR radiation
Compliant with CE, Rohs and UL certificates
3-year Warranty

Technical Descriptions:

Panel Size: 295×595x10mm
LED type: SMD LED
Emitting Colors available: White, Warm white, Nature white
Power: 24W
Operating voltage: DC24V or Constant current
Light-emitting angle: 120 degree
Life: 50000 hours





Third Generation:


Model	Color	Size (mm)	Voltage	Power (W)	Lumens (LM)
PNL2835-300x600-24-W/WW/NW	2700-6500K	295*595*10	Constant Current	24W	2880

LED Lumen Attenuation:


Operating time(hours)	Lumen decrease (%)
5,000	2.3
10,000	5.4
20,000	11.5
50,000	25.2

Typical mounting means:
1. Embedded or recessed installation
2. Suspension installation: hanging by steel rope
3. Surface mounting or Wall mounting

Packaging:

Outer carton: 37*32*70CM
Quantity: 5 units
Net weight: 2.8KG/unit
Gross weight: 15KG/carton



Applications:
Direct replacement of traditional T8 fluorescent light or Phillip Grille light; can be hanged from the roof or mounted into roof or wall or surfaces of any other objects.

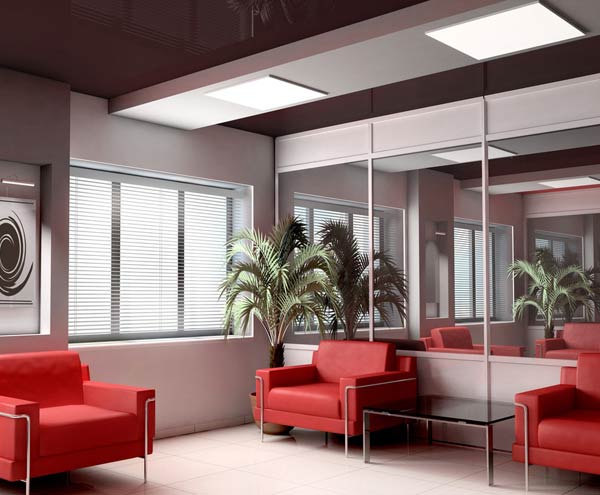

Widely used in commercial or home indoor lighting such as supermarket, conference room, exhibition hall, hotel, office, etc..
