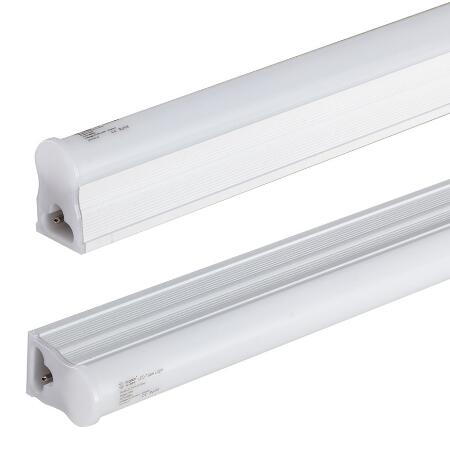

T5 Integrated LED Tube
Key Specifications / Features
Our T5 Integrated LED Tube uses 2835 SMD LED as light source with various sizes available typically 300mm,600mm,1200mm,1500mm. Multiple tubes can be easily joint seamlessly through the connector. This type of T5 integrated tube adopts AC85-265V wide voltage input. It is CE and RoHS compliant.
Request a quote
Detail Information
Features:

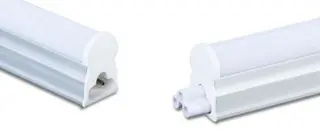

Integrated design makes sure that each two tubes can connect seamlessly without shadow

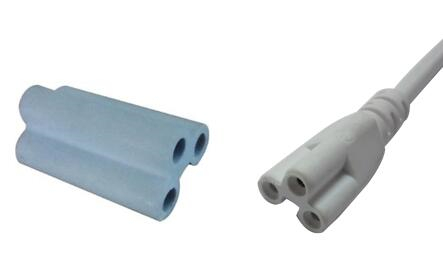

Antioxidant fine copper joint with high quality conductivity and safety
Aluminum alloy body, High-grade PC cover with nice light transmittance
Light source: 2835 SMD LEDs
Color rendering Index (CRI)≥72, CRI>80 available
Inside constant-current led power supply design, Power Factor (PF) >0.90
Ambient temperature:-20℃-40℃, surface temperature: 42℃-45℃
UV free, mercury free, no IR radiation, Eco-friendly
Instant start without Flickering
80% Energy-saving,50,000H lifetime
Product Dimension:
| Standard Length | Dimension(mm) | ||
| A(max) | B(max) | C(max) | |
| 300 | 300 | 28 | 14 |
| 600 | 573 | ||
| 900 | 890 | ||
| 1200 | 1183 | ||
Technical details:
| Model | LED quantity |
Tube length |
Power | Input voltage |

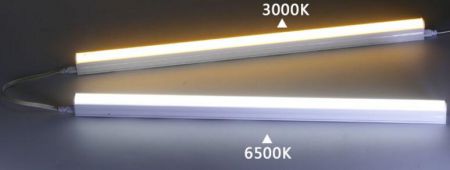

Kelvin Tc(K) |
Lumens (Lm) |
|
| T5ITG-015W2-2835 | 14 PCS | 150mm | 2W±1.0W | AC85-265V | 2800-3200K | 250-300LM | |
| 4000-4500K | 300-350LM | ||||||
| 5500-6500K | 300-350LM | ||||||
| T5ITG-030W4-2835 | 28 PCS | 300mm | 4W±1.0W | AC85-265V | 2800-3200K | 250-300LM | |
| 4000-4500K | 300-350LM | ||||||
| 5500-6500K | 300-350LM | ||||||
| T5ITG-050W7-2835 | 46 PCS | 500mm | 7W±1.0W | AC85-265V | 2800-3200K | 400-450LM | |
| 4000-4500K | 450-500LM | ||||||
| 5500-6500K | 450-500LM | ||||||
| T5ITG-060W8-2835 | 54 PCS | 600mm | 8W±1.0W | AC85-265V | 2800-3200K | 480-540LM | |
| 4000-4500K | 550-600LM | ||||||
| 5500-6500K | 550-600LM | ||||||
| T5ITG-090W12-2835 | 84 PCS | 900mm | 12W±1.0W | AC85-265V | 2800-3200K | 800-900LM | |
| 4000-4500K | 900-1000LM | ||||||
| 5500-6500K | 900-1000LM | ||||||
| T5ITG-100W14-2835 | 92 PCS | 1000mm | 14W±1.0W | AC85-265V | 2800-3200K | 1000-1100LM | |
| 4000-4500K | 1100-1200LM | ||||||
| 5500-6500K | 1100-1200LM | ||||||
| T5ITG-120W16-2835 | 110 PCS | 1200mm | 16W±1.0W | AC85-265V | 2800-3200K | 1200-1300LM | |
| 4000-4500K | 1300-1400LM | ||||||
| 5500-6500K | 1300-1400LM | ||||||
| T5ITG-150W20-2835 | 138 PCS | 1500mm | 20W±1.0W | AC85-265V | 2800-3200K | 1600-1700LM | |
| 4000-4500K | 1700-1800LM | ||||||
| 5500-6500K | 1700-1800LM |
Applications:

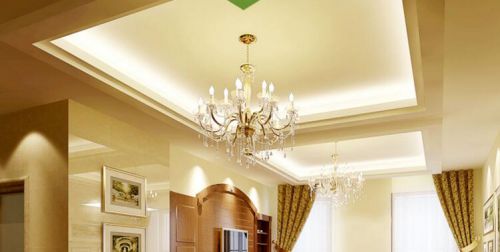

Accent lighting, Task lighting or Display lighting: cabinets, counters, cupboards, etc.
Back lighting for square billboards or advertisement boards.
Residential lighting, supermarket lighting, office lighting, hotel lighting, etc.
