Cage-guided Angle Globe Control Valve, 1-2 Inch, 150-2500 LB
Key Specifications / Features
As a trusted Globe Angle Control Valve supplier, we provide cage-guided, unbalanced valves designed for precision control. Available in sizes ranging from 1 to 2 inches (DN25-DN50), and with pressure ratings from Class 150 to 2500 LB, these valves are constructed from ASTM A216 WCB for robust performance. Featuring flanged weld ends, they ensure secure installation in diverse industrial settings. The design incorporates reliable cage guidance for stable operation and precise flow regulation. Ideal for various applications requiring accurate control of liquids and gases, these valves offer durability and versatility. Whether managing high pressures or demanding environments, our Globe Angle Control Valves deliver consistent performance and reliable sealing for enhanced operational efficiency.
Request a quote
Detail Information
SPECIFICATIONS
Product Name: Globe Angle Cage-guided Control Valve
Size Range: 1 Inch - 2 Inch, DN25-DN50
Pressure Rating: Class 150 LB - 2500 LB
Body Materials: ASTM A352 LCC, ASTM A216 WCB, WCC, ASTM A217 WC9, C5, Monel, ASTM A351 CF8M SST
Trim Materials: Stainless Steel 316, Tungsten Carbide, Stellite Overlay, Cobalt, Ceramic
Seats: Metal
Shutoff: Class IV and V
End Connections: Flanged, Welded, Screwed, Socket
Trim Materials: Stainless Steel 316, Tungsten Carbide, Stellite Overlay, Cobalt, Ceramic
Flow Characteristic: Equal Percentage
Features & Benefits
1. Versatile Design: Offered in both in-line and angle configurations.
2. Precise Control: Standard equal percentage flow characteristic.
3. High Pressure Rating: Capable of handling high pressures.
4. Material Options: Available in a wide range of body and trim materials.
5. Application Versatility: Ideal for various liquid and gas applications with the Mark D/DA Series.
6. Enhanced Durability: Optional trim materials for erosive environments.
7. Sour Service Ready: Optional NACE MRO 175/ISO 15156-2009 compliance.
8. Reliable Sealing: Ensures tight shutoff for optimal performance.

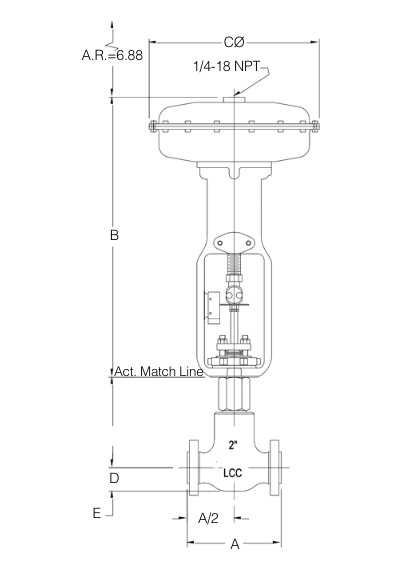

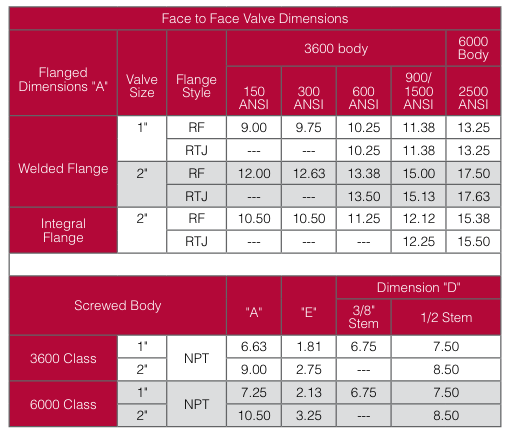

Dimensions
Product Name: Globe Angle Cage-guided Control Valve
Size Range: 1 Inch - 2 Inch, DN25-DN50
Pressure Rating: Class 150 LB - 2500 LB
Body Materials: ASTM A352 LCC, ASTM A216 WCB, WCC, ASTM A217 WC9, C5, Monel, ASTM A351 CF8M SST
Trim Materials: Stainless Steel 316, Tungsten Carbide, Stellite Overlay, Cobalt, Ceramic
Seats: Metal
Shutoff: Class IV and V
End Connections: Flanged, Welded, Screwed, Socket
Trim Materials: Stainless Steel 316, Tungsten Carbide, Stellite Overlay, Cobalt, Ceramic
Flow Characteristic: Equal Percentage
Features & Benefits
1. Versatile Design: Offered in both in-line and angle configurations.
2. Precise Control: Standard equal percentage flow characteristic.
3. High Pressure Rating: Capable of handling high pressures.
4. Material Options: Available in a wide range of body and trim materials.
5. Application Versatility: Ideal for various liquid and gas applications with the Mark D/DA Series.
6. Enhanced Durability: Optional trim materials for erosive environments.
7. Sour Service Ready: Optional NACE MRO 175/ISO 15156-2009 compliance.
8. Reliable Sealing: Ensures tight shutoff for optimal performance.

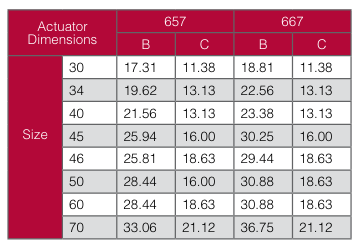

Dimensions
