Single Seated Cage-guided Control Valve, 1-6 IN, 150-600 LB

As a leading provider of Single Port Globe Control Valves, we offer balanced, cage-guided valves designed for precise control in industrial applications. Available in sizes ranging from 1 to 6 inches (DN25-DN150), with pressure ratings from Class 150 to 600 LB, these valves are crafted from ASTM A352 LCC and ASTM A216 WCB materials for durability and performance reliability. Featuring flange ends, they ensure secure installation and compatibility with various piping systems. The balanced design allows for efficient operation with smaller actuators, optimizing cost-effectiveness. These valves provide versatile flow control options, including equal percentage, linear, and quick opening characteristics, suitable for handling liquids, gases, and steam. With enhanced stability and the capability to manage high-pressure drops, our Single Port Globe Control Valves ensure reliable performance and tight shutoff, making them ideal for demanding industrial environments.

SPECIFICATIONS

Product Name: Single Port Globe Control Valve
Size Range: 1 Inch - 6 Inch, DN25-DN150
Pressure: Class 150 LB - 600 LB
Body Materials: ASTM A352 LCC, ASTM A216 WCB, WCC, ASTM A217 WC9, C5, Monel, ASTM A351 CF8M SST
Trim Materials: Stainless Steel 316, Tungsten Carbide, Stellite Overlay, Cobalt, Ceramic
Seats: Metal, PTFE
Shutoff: ANSI Class IV & V, ANSI Class II & III
Maximum Inlet Pressure & Temperature: consistent with ASME Class per ASME 16.34
Flow Characteristics: Quick opening, Linear, Equal Percent
Trim Options: Noise abatement, Anti-cavitation
Flow Direction: Flow Down
End Connection: Flange


Features & Benefits

1. Easy Maintenance: Top entry cage design facilitates straightforward, in-line maintenance.
2. Efficient Operation: Balanced plug design accommodates smaller actuators for cost-effective operation.
3. Versatile Flow Control: Offers characterized flow options such as equal percentage, linear, and quick opening.
4. Material Flexibility: Available in a range of body and trim materials, suitable for liquids, gases, or steam applications.
5. High Pressure Handling: Cage guiding enhances stability for handling high pressure drops effectively.
6. Sour Service Ready: Optional NACE MRO175/ISO15156-2009 compliance ensures suitability for corrosive environments.
7. Reliable Sealing: Ensures tight shutoff for dependable performance in critical applications.

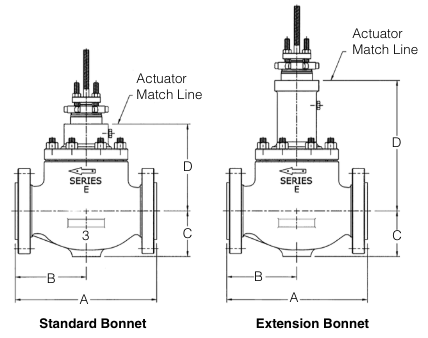

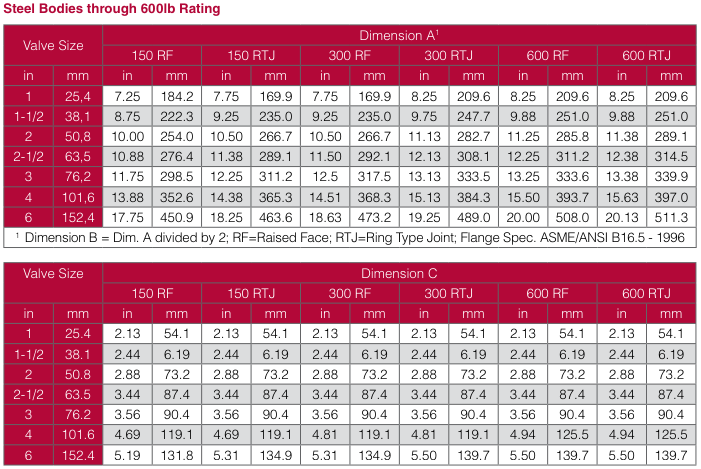

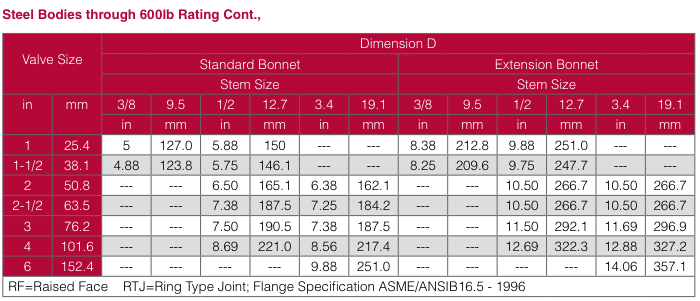

Dimensions
