Two Pieces Floating Ball Valve, 2 Inch, 150 LB, LF2, API 608
Model Number: 2BB1RLF2
Key Specifications / Features
Explore our premium selection of Flanged Floating Ball Valves. Our API 608 compliant valves feature a robust Forged A351 LF2 Body, ensuring durability and reliability. With a 2-inch size and a pressure rating of 150 LB, these valves are suitable for various industrial applications. The RF (Raised Face) design ensures a secure and leak-free connection. Equipped with F316 Trim and Soft Seat, these valves provide excellent resistance to corrosion and offer optimal sealing performance. The Lever Operation allows for easy and convenient valve control. Discover the perfect solution for your needs with our high-quality Flanged Floating Ball Valves.
Detail Information

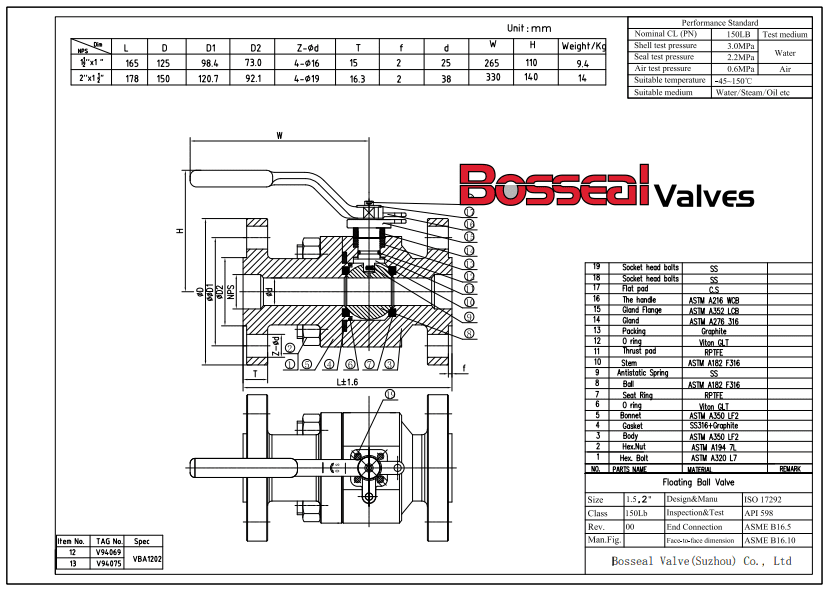

Flanged Floating Ball Valve, API 608, Forged A351 LF2 Body, 2 inch, 150 LB, RF, F316 Trim, Soft Seat, Lever Operation
Valve Description:
1812013 Floating Ball Valve 2BB1RLF2
Design Standard: API 608, ISO 17292, API 6D
Structure: Two pieces body, Side Entry, Bolted Bonnet, Soft Seat, O-ring for stem and body joint
Nominal size: 2 Inch, DN50
Nominal class: 150 LB
Bore Type: Full Bore
End Connection: RF Flanged
Operation: Lever Lockable
Body Material: ASTM A351 LF2
Trim Material: ASTM A182 F316, RPTFE
Face to face: ASME B16.10
Test and inspection: API 598
Key Features: Anti-static Device, Fire Safe, Anti-Blowout Stem, Locking Device
Product Range:
Body material: Carbon Steel, Stainless Steel, Alloy Steel
Normal diameter: 1/2 - 8 Inch (DN15 - DN200)
Pressure range: 150 - 2500 LB
End connection: RF, RTJ, SW, NPT, BW
Working temperature: -29℃ - +150℃
Operation: Lever, Spring Return Lever, Pneumatic Actuator
Valve Description:
1812013 Floating Ball Valve 2BB1RLF2
Design Standard: API 608, ISO 17292, API 6D
Structure: Two pieces body, Side Entry, Bolted Bonnet, Soft Seat, O-ring for stem and body joint
Nominal size: 2 Inch, DN50
Nominal class: 150 LB
Bore Type: Full Bore
End Connection: RF Flanged
Operation: Lever Lockable
Body Material: ASTM A351 LF2
Trim Material: ASTM A182 F316, RPTFE
Face to face: ASME B16.10
Test and inspection: API 598
Key Features: Anti-static Device, Fire Safe, Anti-Blowout Stem, Locking Device
Product Range:
Body material: Carbon Steel, Stainless Steel, Alloy Steel
Normal diameter: 1/2 - 8 Inch (DN15 - DN200)
Pressure range: 150 - 2500 LB
End connection: RF, RTJ, SW, NPT, BW
Working temperature: -29℃ - +150℃
Operation: Lever, Spring Return Lever, Pneumatic Actuator
