API 600, API 603 Gate Valve, 16 Inch, 300 LB, ASTM A351 CF8

Name: API 600, API 603 Gate Valve, 16 Inch, 300 LB, ASTM A351 CF8
Brand: www.bossealvalves.com
SKU: 16G3RCF820
Price: 0.01 USD
Availability: InStock
Rating: 5 (1 reviews)

Model Number: 16G3RCF820

Key Specifications / Features

Looking for a reliable flanged gate valve provider? We offer top-quality gate valves that meet industry standards such as API 600 and API 603. Our valves are designed for 16-inch pipes with a Class 300 LB rating. They have a DN400 size and PN50 pressure rating, ensuring optimal performance. Made from ASTM A351 CF8 material, our valves feature a bolted bonnet and an OS & Y design. They come with RF ends and SS 304 trim for enhanced durability. Trust our expertise for all your gate valve needs.

API 600 Gate Valve Bolted Bonnet Gate Valve Class 300 LB Gate Valve PN50 Gate Valve RF Gate Valve DN400 Gate Valve 16 Inch Gate Valve API 603 Gate Valve ASTM A351 CF8 Gate Valve

Detail Information

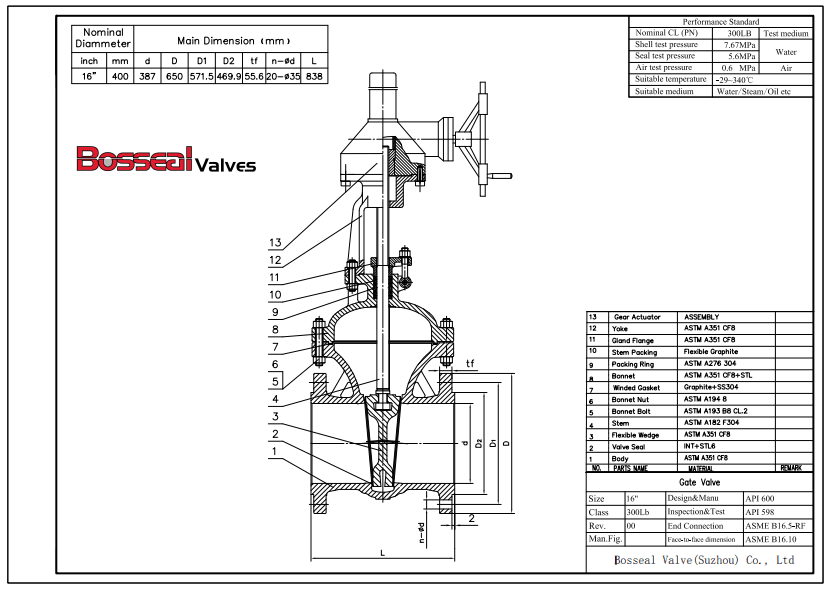

16 inch Class 300 Flanged Gate Valve, API 600, OS & Y, RF, A351 CF8 Body, SS 304 Trim, Gear Operation

Valve Description:
1821015 Gate Valve 16G3RCF820
Design Standard: API 600, API 603
Structure: Bolted Bonnet
Nominal size: 16 Inch
Nominal class: 300 LB
Bore Type: Standard Bore
End Connection: RF (Raised Face)
Operation: Gear
Body Material: ASTM A351 CF8
Trim Material: SS304 + STL, No.20
Face to face: ASME B16.10
Test and inspection: API 598
Key Features: Flexible Wedge, OS & Y, Non-rising Handwheel, Low fugitive emission stem packing available, Renewable Seat

Product Range:
Body material: Carbon Steel, Stainless Steel
Normal diameter: 2 - 48 Inch (DN50 - DN1200)
Pressure range: Class 150 - 2500 LB
End connection: RF, RTJ, BW
Working temperature: -29℃ - +350℃
Operation: Handwheel, Gear, Motor Actuator
