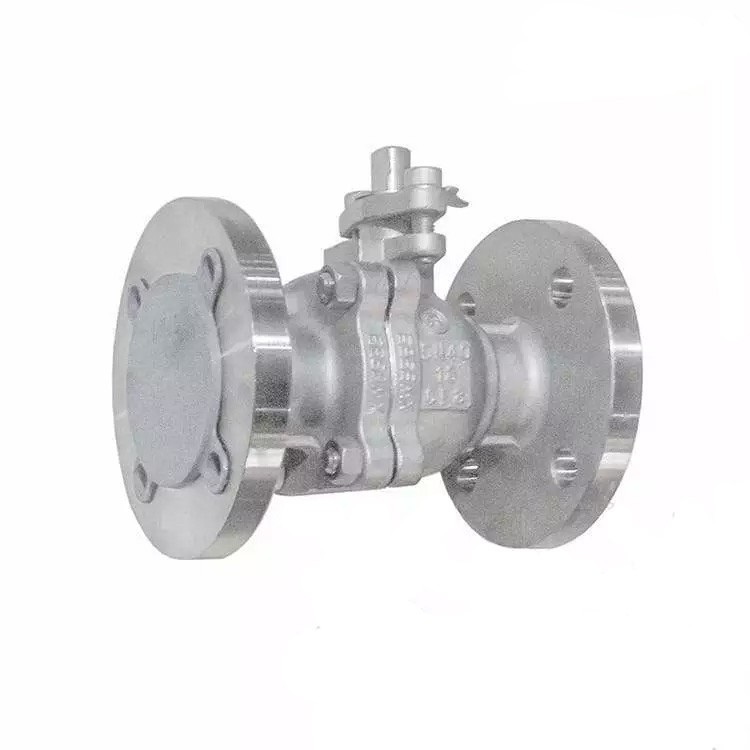

ASTM A351 LF2 Floating Ball Valve, API 608, 1-1/2 IN, 150 LB
Model Number: 1.5BB1RLF2
Key Specifications / Features
Shop the finest quality ASTM A351 LF2 floating ball valve from a leading manufacturer. Available in 1.5" (1-1/2 inch) size, DN40, and designed for 150 LB pressure rating. Our ball valves comply with API 608, ISO 17292, and API 6D standards. Featuring RF (raised face) flanges and constructed with ASTM A182 F316 trim, these valves are equipped with a soft seat and operate smoothly with a lever.
Detail Information
Flanged Floating Ball Valve, API 608, Forged A351 LF2 Body, 1.5 inch, 150 LB, RF, F316 Trim, Soft Seat, Lever Operation
Valve Description:
1812012 Floating Ball Valve 1.5BB1RLF2
Design Standard: API 608, ISO 17292, API 6D
Structure: Two pieces body, Side Entry, Bolted Bonnet, Soft Seat, O-ring for stem and body joint
Nominal size: 1.5 Inch, 1-1/2 IN, DN40
Nominal class: 150 LB
Bore Type: Full Bore
End Connection: RF Flanged
Operation: Lever Lockable
Body Material: ASTM A351 LF2
Trim Material: ASTM A182 F316, RPTFE
Face to face: ASME B16.10
Test and inspection: API 598
Key Features: Anti-static Device, Fire Safe, Anti-Blowout Stem, Locking Device
Product Range:
Body material: Carbon Steel, Stainless Steel, Alloy Steel
Normal diameter: 1/2 - 8 Inch (DN15 - DN200)
Pressure range: Class 150 - 2500 LB
End connection: RF, RTJ, SW, NPT, BW
Working temperature: -29℃ - +150℃
Operation: Lever, Spring Return Lever, Pneumatic Actuator
Valve Description:
1812012 Floating Ball Valve 1.5BB1RLF2
Design Standard: API 608, ISO 17292, API 6D
Structure: Two pieces body, Side Entry, Bolted Bonnet, Soft Seat, O-ring for stem and body joint
Nominal size: 1.5 Inch, 1-1/2 IN, DN40
Nominal class: 150 LB
Bore Type: Full Bore
End Connection: RF Flanged
Operation: Lever Lockable
Body Material: ASTM A351 LF2
Trim Material: ASTM A182 F316, RPTFE
Face to face: ASME B16.10
Test and inspection: API 598
Key Features: Anti-static Device, Fire Safe, Anti-Blowout Stem, Locking Device
Product Range:
Body material: Carbon Steel, Stainless Steel, Alloy Steel
Normal diameter: 1/2 - 8 Inch (DN15 - DN200)
Pressure range: Class 150 - 2500 LB
End connection: RF, RTJ, SW, NPT, BW
Working temperature: -29℃ - +150℃
Operation: Lever, Spring Return Lever, Pneumatic Actuator
