Bellow Seal Globe Valve, 1 Inch, 600 LB, A105N, API 602, SW

Name: Bellow Seal Globe Valve, 1 Inch, 600 LB, A105N, API 602, SW
Brand: www.bossealvalves.com
SKU: 1GLB6SA10505-WB
Price: 0.01 USD
Availability: InStock
Rating: 4 (1 reviews)

Model Number: 1GLB6SA10505-WB

Key Specifications / Features

This Bellow Seal Forged Globe Valve is designed for gas service, conforming to API 602 standards. It has a size of 1 inch, a pressure rating of 600 LB, and a socket weld (SW) connection. The valve body is made of A105 material with Trim 5, and features a welded bonnet and a handwheel for manual operation.

API 602 Globe Valve ASME B16.34 Globe Valve Class 600 LB Globe Valve 1 Inch Globe Valve DN25 Globe Valve PN100 Globe Valve SW Globe Valve Bellow Seal Globe Valve ASTM A105N Globe Valve Forged Steel Globe Valve Welded Bonnet Globe Valve

Contact Supplier

Detail Information

Bellow Seal Forged Globe Valve for gas service, API 602, 1 INCH, 600 LB, SW, A105 Body, Trim 5, Welded Bonnet, Handwheel

Valve Description:

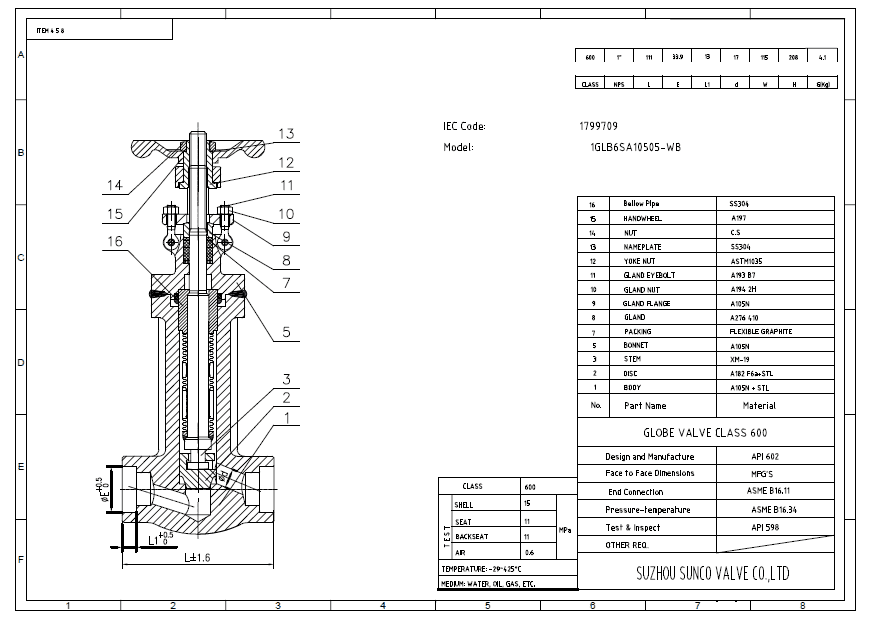

1852006 API 602 Forged Globe Valve 1GLB6SA10505-WB
Design Standard: API 602, ASME B16.34
Structure: Welded Bonnet, OS & Y
Nominal size: 1 Inch
Nominal class: 600 LB
Bore: Regular Bore
End Connection: SW-Socket Weld
Operation: Handwheel
Body Material: ASTM A105N
Trim Material: 1CR13+STL.6, Trim 5
Face to face: MFG'S
Test and inspection: API 598
Key Features: Independent backseat, Fully guided solid Disc, Adjustable Packing Gland, Bellow seal & welded bonnet for hazard service

Product Range:
Body material: Carbon Steel, Stainless Steel, Duplex steel, Alloy
Normal diameter: 1/2-2 Inch (DN15 - DN50)
Pressure range: Class 150-2500 LB
End connection: RF, RTJ, SW, BE, NPT
Working temperature: -29℃ - +400℃
Operation: Handwheel
