ASME B16.34 Globe Valve, PSB, ASTM A105N, 1 Inch, 4500 LB

Name: ASME B16.34 Globe Valve, PSB, ASTM A105N, 1 Inch, 4500 LB
Brand: www.bossealvalves.com
SKU: 1GLP45SA10505
Price: 0.01 USD
Availability: InStock
Rating: 4 (1 reviews)

Model Number: 1GLP45SA10505

Key Specifications / Features

This is a 1-inch ASME B16.34 designed globe valve with a pressure seal bonnet and a forged A105 body. The valve has a trim 5 and is operated manually with a handwheel. It is suitable for high-pressure applications with a maximum working pressure of 4500 LB and is designed for socket weld connections.

ASTM A105N Globe Valve Forged Steel Globe Valve API 602 Globe Valve 1 Inch Globe Valve ASME B16.34 Globe Valve DN25 Globe Valve PSB Globe Valve Pressure Seal Bonnet Globe Valve Class 4500 LB Globe Valve SW Globe Valve

Contact Supplier

Detail Information

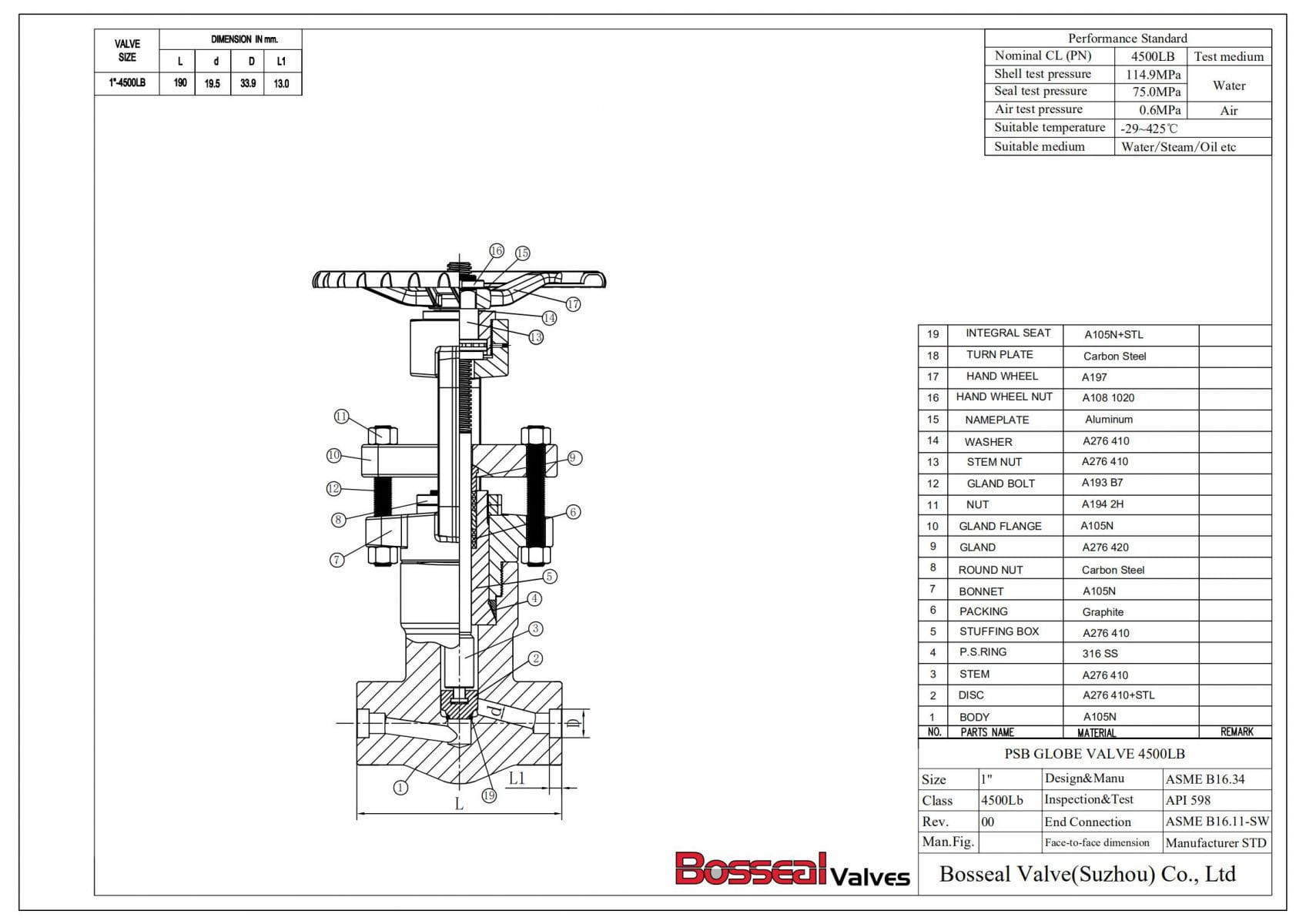

4500 LB Forged Globe Valve, Pressure Seal Bonnet, ASME B16.34 Design, 1 INCH, SW, A105 Body, Trim 5, Handwheel

Valve Description:
1852003 API 602 Forged Globe Valve 1GLP45SA10505
Design Standard: API 602, ASME B16.34
Structure: Pressure Seal Bonnet, OS & Y, T Pattern
Nominal size: 1 Inch
Nominal class: 4500 LB
Bore: Regular Bore
End Connection: SW-Socket Weld End
Operation: Handwheel
Body Material: ASTM A105N
Trim Material: 1Cr13+STL, No.5
Face-to-face: Manufacturer Standard
Test and inspection: API 598
Key Features: Independent backseat, Fully guided solid disc, Adjustable Packing Gland, plug disc (parabola disc available), High-Pressure Compact design

Product Range:
Body material: Carbon Steel, Stainless Steel, Duplex steel, Alloy
Normal diameter: 1/2-2 Inch (DN15 - DN50)
Pressure range: Class 2500-4500 LB
End connection: SW, BW
Working temperature: -29℃ - +500℃
Operation: Handwheel
