Y Pattern Globe Valve, ASTM A182 F316L, 3/8 Inch, 2680 LB
Key Specifications / Features
This Y Pattern Bonnetless Forged Globe Valve is an API 602 compliant valve with a 3/8 inch size, socket weld ends, and F316L body material. It features trim 16 and a handwheel for manual operation. This high-quality valve is capable of withstanding pressures up to 2680 LB, making it ideal for various industrial applications.
Request a quote
Detail Information

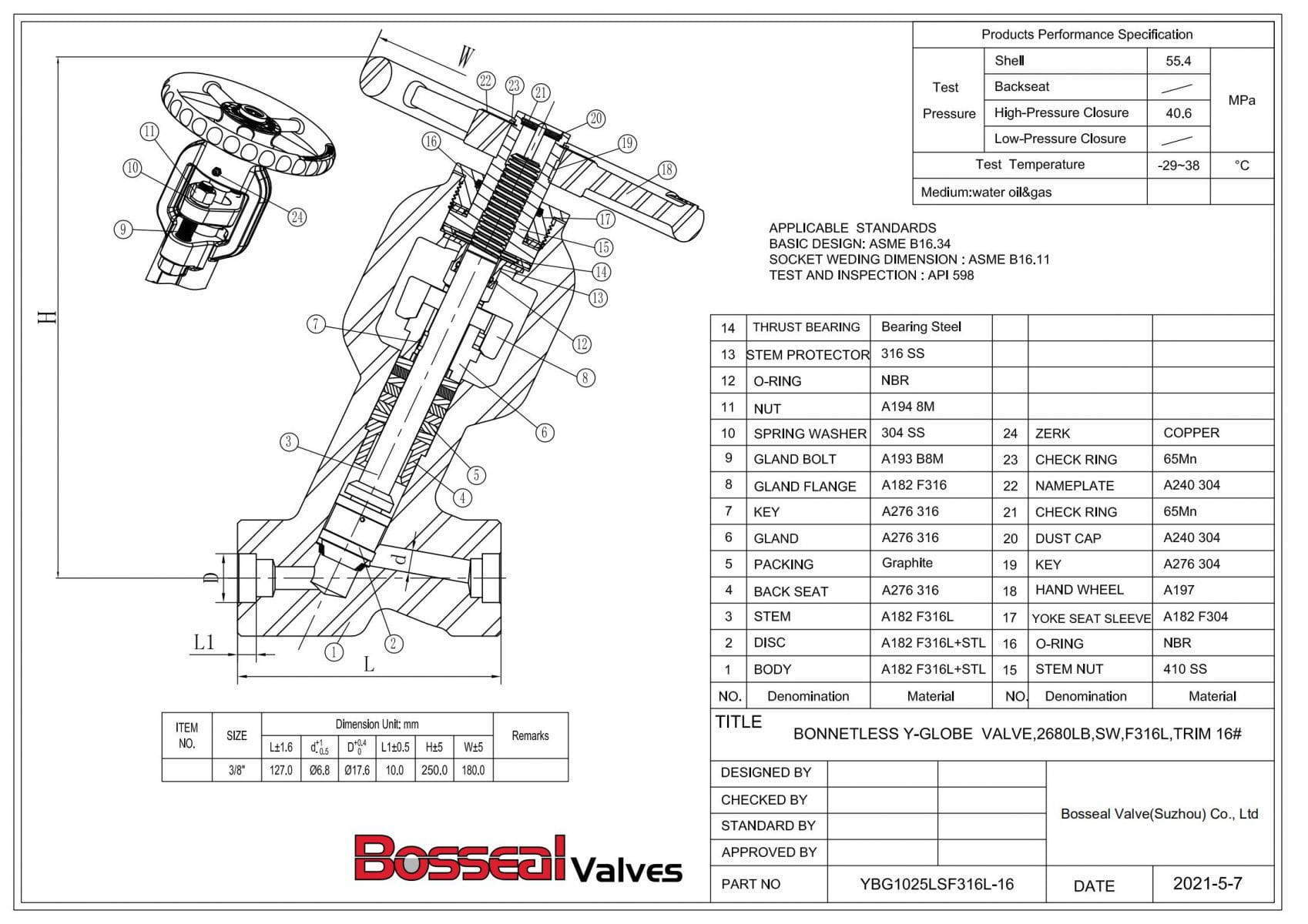

2680 LB Y Pattern Bonnetless Forged Globe Valve, API 602, 3/8 INCH, SW, F316L Body, Trim 16, Handwheel
Valve Description:
1852007 API 602 Forged Globe Valve 0.875GLY26SF316L16
Design Standard: API 602, ASME B16.34
Structure: Bonnettless, OS & Y, Y Pattern
Nominal size: 3/8 Inch
Nominal class: 2680 LB
Bore: Regular Bore
End Connection: SW-Socket Weld End
Operation: Handwheel
Body Material: ASTM A182 F316L
Trim Material: SS316L+STL, No.16
Face to face: Manufacturer Standard
Test and inspection: API 598
Key Features: Independent backseat, Fully guided solid disc, Adjustable Packing Gland, plug disc (parabola disc available), Low emission Bonnetless Design
Product Range:
Body material: Carbon Steel, Stainless Steel, Duplex steel, Alloy
Normal diameter: 1/2-2 Inch (DN15 - DN50)
Pressure range: Class 800-2500 LB
End connection: SW, NPT, BSP
Working temperature: -29℃ - +400℃
Operation: Handwheel
Valve Description:
1852007 API 602 Forged Globe Valve 0.875GLY26SF316L16
Design Standard: API 602, ASME B16.34
Structure: Bonnettless, OS & Y, Y Pattern
Nominal size: 3/8 Inch
Nominal class: 2680 LB
Bore: Regular Bore
End Connection: SW-Socket Weld End
Operation: Handwheel
Body Material: ASTM A182 F316L
Trim Material: SS316L+STL, No.16
Face to face: Manufacturer Standard
Test and inspection: API 598
Key Features: Independent backseat, Fully guided solid disc, Adjustable Packing Gland, plug disc (parabola disc available), Low emission Bonnetless Design
Product Range:
Body material: Carbon Steel, Stainless Steel, Duplex steel, Alloy
Normal diameter: 1/2-2 Inch (DN15 - DN50)
Pressure range: Class 800-2500 LB
End connection: SW, NPT, BSP
Working temperature: -29℃ - +400℃
Operation: Handwheel
