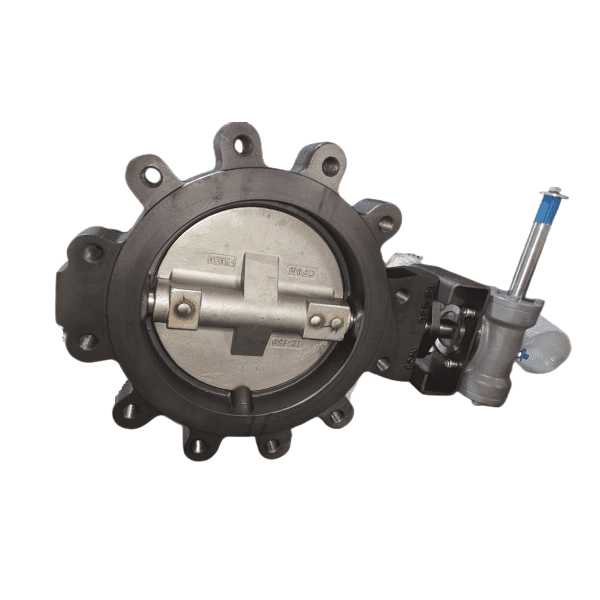

ASTM A351 CF8 Double Offset Butterfly Valve, 12 Inch, 600 LB

This high-performance butterfly valve is made of durable stainless steel CF8 with a lug-type design. It has a double offset and meets API 609 standards. The valve is 12 inches in size and can handle up to 600 LB of pressure. The body and disc are also made of CF8, while the seat is made of RPTFE. The valve is gear-operated for easy manipulation.

600 LB Lug Type Stainless Steel CF8 High-Performance Butterfly Valve, Double Offset, API 609, 12 Inch, 600 LB, CF8 body & Disc, RPTFE seat, Gear Operated

Valve Description:
1862006 Double Offset Butterfly Valve 12TB6LCF8
Design Standard: API 609 Cat B
Structure: Double Offset
Nominal size: 12 Inch
Nominal class: 600 LB
End Connection: Lug-RF
Operation: Bare Stem, ISO 5211 Mounting
Body Material: ASTM A351 CF8
Trim Material: A351 CF8 disc, RPTFE seat
Face to face: API 609
Test and inspection: API 598
Key Features: Long working life for frequent open/close (million cyclings), Low torque, Replaceable seat, Tight sealing, Excellent control characteristics, Standard ISO 5211 Mounting

Product Range:
Body material: WCB, Stainless Steel, Duplex steel, Al-Bronze, Ti
Normal diameter: 2 - 48 Inch (DN50 - DN800)
Pressure range: Class 150 - 300 LB
End connection: Wafer, Lug, Flanged
Working temperature: -29℃ - +120℃
Operation: Lever, Gear
