API 609 Double Offset Butterfly Valve, 4 IN, 300 LB, WCB

Name: API 609 Double Offset Butterfly Valve, 4 IN, 300 LB, WCB
Brand: www.bossealvalves.com
SKU: 4TB3WWCB
Price: 0.01 USD
Availability: InStock
Rating: 5 (1 reviews)

Model Number: 4TB3WWCB

Key Specifications / Features

This High-Performance Double Offset Butterfly Valve is designed with a robust 4-inch 300 LB body made of WCB material and features a 17-4PH stem, CF8M disc, and RPTFE seat for durable and reliable performance. The valve conforms to API 609 standards and is designed in a wafer style with a bare shaft and ISO 5211 mounting for easy installation and adaptation.

Wafer Butterfly Valve Double Offset Butterfly Valves Class 300 LB Butterfly Valve PN50 Butterfly Valve ASTM A216 WCB Butterfly Valve API 609 Cat B Butterfly Valve High Performance Butterfly Valve DN100 Butterfly Valve 4 Inch Butterfly Valve

Detail Information

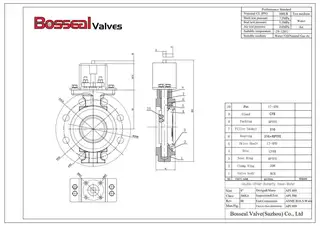

4 INCH 300 LB Double Offset Butterfly Valve, High Performance, API 609, Wafer, WCB Body, 17-4PH Stem, CF8M Disc, RPTFE seat, Bare Shaft with ISO 5211 Mounting

Valve Description:
1862008 Double Offset Butterfly Valve 4TB3WWCB
Design Standard: API 609 Cat B
Structure: Double Offset
Nominal size: 4 Inch
Nominal class: 300 LB
End Connection: Wafer-RF
Operation: Bare Stem, ISO 5211 Mounting
Body Material: ASTM A216 WCB
Trim Material: A351 CF8M disc, RPTFE seat
Face to face: API 609
Test and inspection: API 598
Key Features: Long working life for frequent open/close (million cyclings), Low torque, Replaceable seat, Tight sealing, Excellent control characteristics

Product Range:
Body material: WCB, Stainless Steel, Duplex steel, Al-Bronze, Ti
Normal diameter: 2 - 48 Inch (DN50 - DN800)
Pressure range: Class 150 - 300 LB
End connection: Wafer, Lug, Flanged
Working temperature: -29℃ - +120℃
Operation: Lever, Gear
