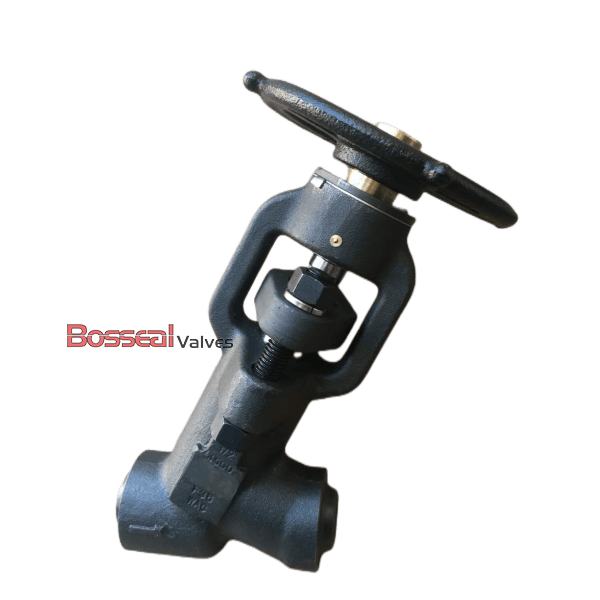

API 602 Y Globe Valve, ASTM A182 F11, 3/4 IN, CL 800 LB, BW

Name: API 602 Y Globe Valve, ASTM A182 F11, 3/4 IN, CL 800 LB, BW
SKU: 1852036
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

We are a leading supplier of ASTM A182 F11 globe valves from China, designed to meet API 602 and ASME B16.34 standards. Our 3/4 inch, Class 800 LB globe valves feature a pressure seal bonnet for superior leak protection and a reduced bore for optimized flow control. The butt weld end ensures a secure, reliable connection in high-pressure applications. Built for durability and high performance, these valves are ideal for demanding industrial environments. Trust our expertise to provide robust, efficient solutions for your valve needs.

Request a quote

Detail Information

API 602 Y Globe Valve, Pressure Seal Bonnet, 3/4 Inch, 800 LB, ASTM A182 F11 Body, for Power Plant

Valve Description:
1852036 Globe Valve
Design Standard: ASME B16.34, API 602
Structure: Bolted Bonnet, Pressure Seal Bonnet, Welded Bonnet, Bonnetless
Nominal Size: 3/4 Inch
Nominal Class: CL 800 LB, PN130
Bore Type: Reduced
End Connection: BW(Butt Weld), SW(Socket Weld), NPT(National Pipe Thread)
Operation: Handwheel
Body Material: ASTM A182 F11, ASTM A105N, ASTM A182 F22, ASTM A182 F316, ASTM A182 F91
Trim Material: ASTM A182 F6A, ASTM A182 F304, ASTM A182 F316
Face to Face: MFG'S
Test and Inspection: API 598

Key Features:
Rising Stem with Handwheel
Available with Swivel, Plug, or Needle Disc
Y Pattern
OS&Y (Outside Screw & Yoke)
Live Load Packing
Backseat
Compact and Robust Body Suitable for High-Temperature and High-Pressure Service

Product Line:
Body Material: Carbon Steel, Stainless Steel, Alloy Steel
Normal Diameter: 1/2 Inch - 2 Inch (DN15-DN50)
Pressure Range: Class 800 LB - 4500 LB
Working Temperature: -29°C - +525°C
Operation: Manual or Actuated
End Connection: BW/SW/NPT
