ASME B16.34 Y Globe Valve, ASTM A105N, 1/2 Inch, CL 800 LB
Model Number: 1852035
Key Specifications / Features
As a top ASTM A105N globe valve manufacturer in China, we deliver high-quality valves compliant with ASME B16.34 and API 602 standards. Available in 1/2 inch size and 800 LB rating, our globe valves are designed for demanding applications. They feature a bolted bonnet for easy maintenance, reduced bore for enhanced flow control, and versatile end connections including socket weld (SW), butt weld (BW), and NPT. Built to endure high temperatures and pressures, our valves ensure durability and reliable performance. Trust us for robust, efficient solutions for your industrial valve needs.
Detail Information

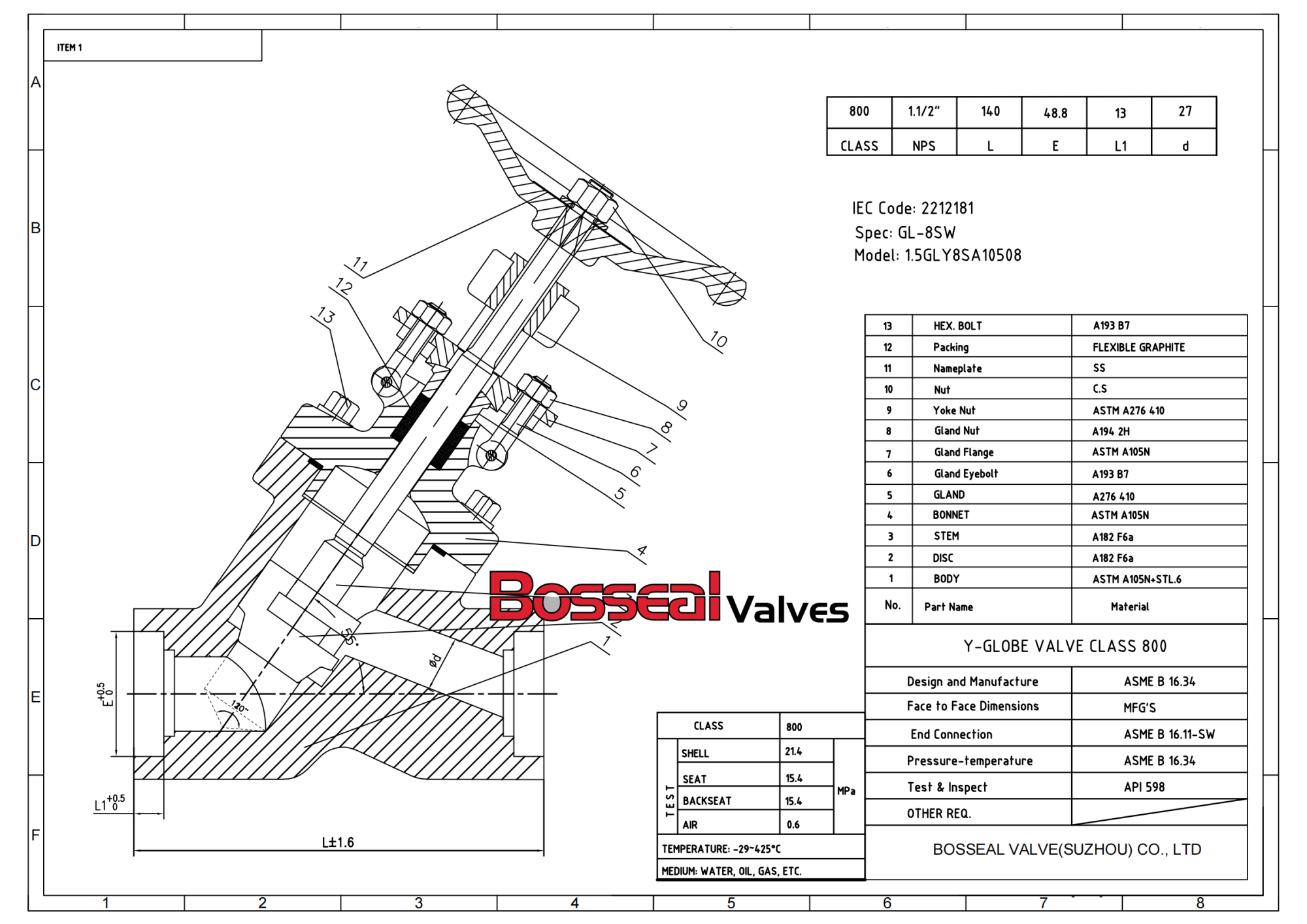

ASME B16.34 Y Globe Valve, Bolted Bonnet, ASTM A105N, 1/2 Inch, Class 800 LB, SW Ends
Key Features:
Y Pattern
OS&Y (Outside Screw & Yoke)
Live Load Packing
Backseat
Rising Stem with Handwheel
Available with Swivel, Plug, or Needle Disc
Compact and Robust Body Suitable for High-Temperature and High-Pressure Service
Product Range:
Body Material: Carbon Steel, Stainless Steel, Alloy Steel
Normal Diameter: 1/2 - 2 Inch (DN15-DN50)
Pressure Range: 800 - 4500 LB
End Connection: BW, SW, NPT
Working Temperature: -29°C - +525°C
Operation: Manual or Actuated
| Valve Description: | 1852035 Globe Valve |
| Structure: | Bolted Bonnet, Pressure Seal Bonnet, Welded Bonnet, Bonnetless |
| Design Standard: | ASME B16.34, API 602 |
| Nominal Size: | 1/2 Inch |
| Nominal Class: | 800 LB, PN 130 |
| Bore Type: | Reduced |
| End Connection: | SW, BW, NPT |
| Operation: | Handwheel |
| Body Material: | ASTM A105N, ASTM A182 F11, ASTM A182 F22, ASTM A182 F316, ASTM A182 F91 |
| Trim Material: | ASTM A182 F6A, F304, F316 |
| Face to Face: | MFG'S |
| Test and Inspection: | API 598 |
Key Features:
Y Pattern
OS&Y (Outside Screw & Yoke)
Live Load Packing
Backseat
Rising Stem with Handwheel
Available with Swivel, Plug, or Needle Disc
Compact and Robust Body Suitable for High-Temperature and High-Pressure Service
Product Range:
Body Material: Carbon Steel, Stainless Steel, Alloy Steel
Normal Diameter: 1/2 - 2 Inch (DN15-DN50)
Pressure Range: 800 - 4500 LB
End Connection: BW, SW, NPT
Working Temperature: -29°C - +525°C
Operation: Manual or Actuated
