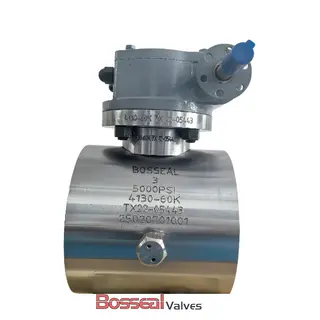

Alloy Steel Compact Ball Valve, API 6D/API 6A, F51 Trim, RTJ

Name: Alloy Steel Compact Ball Valve, API 6D/API 6A, F51 Trim, RTJ
SKU: BV-181105019
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

As a leading compact ball valve factory in China, we specialize in manufacturing high-performance valves designed to API 6D and API 6A standards for demanding industrial and oilfield applications. Our valves are constructed with robust alloy steel bodies made from F60, F65, or AISI 4130, ensuring exceptional strength and durability under high pressure up to 2000 PSI. Equipped with 17-4PH or Inconel trims, they deliver excellent corrosion and wear resistance. Available in 6-3/8 inch sizes with RTJ or butt-weld (BW) end connections, these soft-seated ball valves provide precise, reliable, and leak-free performance for critical flow control systems.

Request a quote

Detail Information

Valve Description:
181105019 API 6A Compact Ball Valve
Design Standard: API 6A/API 6D
Structure: 1pc body
Nominal Size: 1-13/16 Inch to 11 Inch
Nominal Class: 2000-15000 PSI
Body Material: AISI 4130/ASTM A694 F60/A694 F65
Trim Material: AISI 4140/F51/17-4PH/Inconel Trim
Bore Type: Full Bore or Reduced Bore
End Connection: RTJ, BW, and Hub
Operation: Lever/Gear/Bare Shaft
Test and Inspection: API 6A/API 6D
Seat Insert: POM/PEEK or hard faced
Face to Face: ASME B16.10/MFG'S

Key Features:
Compact design with short face to face and low weight
Low torque
Easy for maintenance
Removable seat retainer to reduce torque and easy for repair

• Material Class: AA, BB, CC, DD, EE, FF, HH
• Temperature Class: L, N, P, S, T, U, V, X, Y
• Specification: PSL1 - PSL3G
• Performance: PR1, PR2

Product Range:
Body Material: Carbon Steel, Stainless Steel, Alloy Steel
Normal Diameter: 1-13/16 - 11 Inch
Pressure Range: 2000PSI - 15000PSI
End Connection: RF, RTJ, BW, HUB
Working Temperature: -26°C - +150°C
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator
