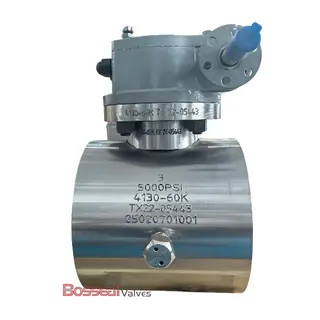

ASTM A694 F65 Ball Valves, 1PC Body, 4140 Trim, 6-3/8 Inches

Name: ASTM A694 F65 Ball Valves, 1PC Body, 4140 Trim, 6-3/8 Inches
SKU: BV-181105020
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

As a leading compact ball valve factory in China, we manufacture high-quality valves engineered to meet API 6D and API 6A standards for reliable performance in demanding applications. Each valve features a durable ASTM A694 F65 one-piece (1PC) body and a robust AISI 4140 trim, ensuring superior strength and longevity under high-pressure conditions up to 2000 PSI. Available in 6-3/8 inch sizes, these valves can be equipped with soft or metal seats and RTJ or butt-weld (BW) end connections. Offered with lever, gear, or actuated operation, they provide precise and dependable flow control for industrial and oilfield systems.

Request a quote

Detail Information

Valve Description:
181105020 API 6A Compact Ball Valve
Design Standard: API 6A/API 6D
Structure: 1pc body
Nominal Size: 1-13/16 Inch to 11 Inch
Nominal Class: 2000-15000 PSI
Bore Type: Full Bore or Reduced Bore
End Connection: RTJ, BW, and Hub
Operation: Lever/Gear/Bare Shaft
Body Material: AISI 4130/ASTM A694 F60/A694 F65
Trim Material: AISI 4140/F51/17-4PH/Inconel Trim
Seat Insert: POM/PEEK or hard faced
Face to Face: ASME B16.10/MFG'S
Test and Inspection: API 6A/API 6D

Key Features:
Compact design with short face to face and low weight
Low torque
Easy for maintenance
Removable seat retainer to reduce torque and easy for repair

• Material Class: AA, BB, CC, DD, EE, FF, HH
• Temperature Class: L, N, P, S, T, U, V, X, Y
• Specification: PSL1 - PSL3G
• Performance: PR1, PR2

Product Range:
Body Material: Carbon Steel, Stainless Steel, Alloy Steel
Normal Diameter: 1-13/16 - 11 Inch
Pressure Range: 2000PSI - 15000PSI
End Connection: RF, RTJ, BW, HUB
Working Temperature: -26°C - +150°C
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator
