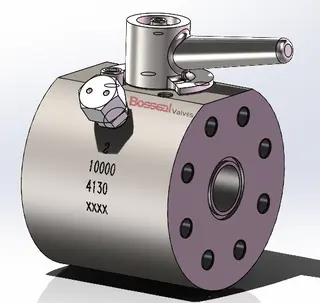

API 6A Forged Ball Valve, A694 F60/F65, 6-3/8 IN, 2000 PSI

Name: API 6A Forged Ball Valve, A694 F60/F65, 6-3/8 IN, 2000 PSI
SKU: BV-181105018
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

As a leading forged ball valve manufacturer in China, we produce high-quality valves built to API 6A standards for superior performance in demanding industrial and oilfield applications. Our forged ball valves feature rugged ASTM A694 F60 or F65 bodies for excellent strength and pressure resistance, combined with durable AISI 4140 or F51 trims to ensure long service life. Available in 6-3/8 inch sizes and rated up to 2000 PSI, these valves are offered with RTJ or butt-weld (BW) end connections and soft or metal seat options, providing precise sealing, safety, and reliability in critical flow control operations.

Request a quote

Detail Information

Valve Description:
181105018 API 6A Compact Ball Valve
Design Standard: API 6A/API 6D
Structure: 1pc body
Nominal Size: 1-13/16 Inch to 11 Inch
Nominal Class: 2000-15000 PSI
Bore Type: Full Bore or Reduced Bore
End Connection: RTJ, BW, and Hub
Operation: Lever/Gear/Bare Shaft
Body Material: AISI 4130/ASTM A694 F60/A694 F65
Trim Material: AISI 4140/F51/17-4PH/Inconel Trim
Seat Insert: POM/PEEK or hard faced
Face to Face: ASME B16.10/MFG'S
Test and Inspection: API 6A/API 6D

Key Features:
Compact design with short face to face and low weight
Low torque
Easy for maintenance
Removable seat retainer to reduce torque and easy for repair

• Material Class: AA, BB, CC, DD, EE, FF, HH
• Temperature Class: L, N, P, S, T, U, V, X, Y
• Specification: PSL1 - PSL3G
• Performance: PR1, PR2

Product Range:
Body Material: Carbon Steel, Stainless Steel, Alloy Steel
Normal Diameter: 1-13/16 - 11 Inch
Pressure Range: 2000PSI - 15000PSI
End Connection: RF, RTJ, BW, HUB
Working Temperature: -26°C - +150°C
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator
