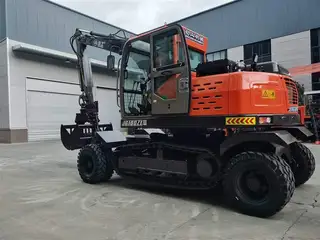

Crawler and Wheeled Hybrid Excavator, Equipped Single-Dipper
Key Specifications / Features
As a producer of hybrid excavators, we offer both crawler and wheeled options, featuring a single-dipper design. With a machine weight of 9.2 tons, an engine power of 62.5 KW, and a maximum digging reach of 6900 mm, our excavators are built to tackle a wide range of tasks efficiently.
Request a quote
Detail Information
| SPECIFICATIONS | ||
| RANGE OF OPERATION |
Boom Length | 3680mm |
| Arm Length | 2000mm | |
| Maximum Digging Reach | 6900mm | |
| Maximum Digging Depth | 3300mm | |
| Maximum Digging Force | 45KN | |
| Maximum Digging Height | 7300mm | |
| Maximum Dumping Height | 5250mm | |
| Back-End Radius Of Gyration | 1980mm | |
| FIXTURE PARAMETERS |
Max radius of capture | 6000mm |
| Grab The Biggest Opening Width | 1250-1500mm | |
| Grab The Minimum Opening Width | 100-300mm | |
| Maximum Radius Weight Capacity | 500-600kg | |
| Grapple Rotation Angle | 360° | |
| Maximum Dumping Height | 4700mm | |
| Back-End Radius Of Gyration | 1980mm | |
| DIMENSION |
(Length*width*height) travel position | 6500*2300*2930mm |
| Wheel base | 3400mm | |
| Track(Front/rear) | 1850mm/1750mm | |
| Wheel base | 1730mm | |
| Track Gauge | 1690mm | |
| Width of Crawler | 400mm | |
| Ground clearance of counterweight | 1040mm | |
| Min ground clearance | 200mm | |
| TECHNICAL PARAMETERS |
Angle of rotation | 360° |
| Machine weight | 9400kgs | |
| Engine model | YUCHAI YC4FA85 | |
| Rated Power | 62.5KW | |
| Rated Speed | 2200r/min | |
| Hydraulic system working pressure | 20Mpa | |
| Hydraulic system flow | 120L/min | |
| Variable piston pump | 2*28ml/r | |
| Max Hauling Force | 45KN | |
| Walking speed | 25km/h | |
| Grade Climbing ability | 58%/30° | |
| Tyre model | 825-16 | |
| Volume Of Bucket | 0.2-0.3m³ | |
| Swing Overload Pressure | 16Mpa | |
| Full circle swinging time | 5.5s | |
| Fqt Fuel Quantity | ≥4L/h | |
| Hydraulic Tank Capacity | 110L | |
| Capacity Of The Fuel Tank | 110L | |
