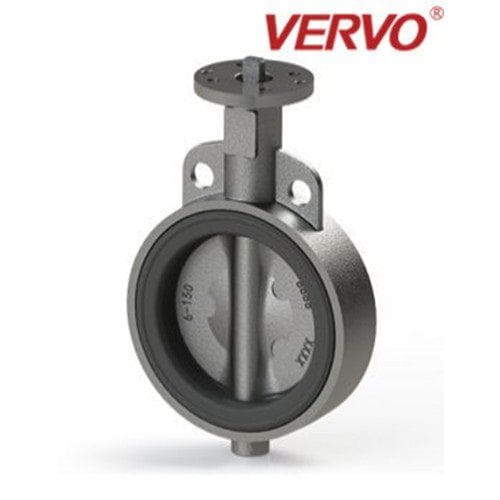

API 609 Wafer Butterfly Valve, ASTM A351 CF8M, 6 Inch, 150 LB
Model Number: WV-240105-CBFV-03
Key Specifications / Features
Experience optimal flow control with our API 609 Wafer Butterfly Valve. Built from robust ASTM A351 CF8M, this valve features a 6-inch size, DN150 specifications, Class 150 LB rating, and PN20 capabilities. The resilient seat ensures reliable performance, and it conforms to Face to Face ASME B16.10 standards.
Detail Information
Design Standard: API 609
Body Material: ASTM A351 CF8M
Nominal Diameter: 6 Inch, DN150
Pressure: Class 150 LB, CL150, PN20
End Connection: LUG
Face To Face: ASME B16.10
Test And Inspection: API 598
Feature: Resilient Wafer Flanged Butterfly Valve, Wafer Resilient Seat, Flanged Resilient Seat
Body Material: ASTM A351 CF8M
Nominal Diameter: 6 Inch, DN150
Pressure: Class 150 LB, CL150, PN20
End Connection: LUG
Face To Face: ASME B16.10
Test And Inspection: API 598
Feature: Resilient Wafer Flanged Butterfly Valve, Wafer Resilient Seat, Flanged Resilient Seat
