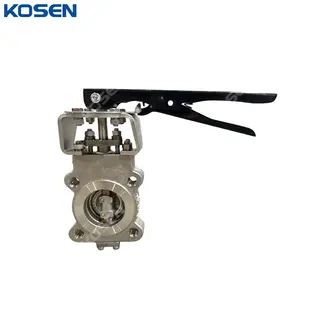

Double Offset Butterfly Valve, API 609, CF8M, 4 IN, 150 LB

Name: Double Offset Butterfly Valve, API 609, CF8M, 4 IN, 150 LB
Brand: www.vervovalve.com
Price: 0.01 USD
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Double Offset Butterfly Valve Supplier: PTFE Seat Lug Butterfly Valves, Double Offset, API 609, 4 Inch, DN100, ASTM A351 CF8M, 150 LB, PN20, Soft Sealed.

API 609 Butterfly Valves Lugged Butterfly Valves ASTM A351 CF8M Butterfly Valves Class 150 LB Butterfly Valves PN20 Butterfly Valves 4 Inch Butterfly Valves DN100 Butterfly Valves Electric Butterfly Valves Double Eccentric Butterfly Valves Double Offset Butterfly Valves Soft Sealed Butterfly Valves Worm Gear Butterfly Valves PTFE Seat Butterfly Valves Industrial Butterfly Valves Pneumatic Butterfly Valves

Detail Information

Double Offset Butterfly Valve, PTFE Seat, Lug type

Design Standard: API 609
Body Material: ASTM A351 CF8M
Nominal Diameter: 4 Inch, DN100, 100 MM
Pressure: Class 150 LB, CL150, PN20
End Connection: LUG Type End
Face To Face: API 609
Test and Inspection: API 598
Driving Mode: Worm Gear
Valve Stem: Normal
Material of Seal Surface: Soft Sealed
Working Temperature: -35°C - 150°C

Product Range

Size: 2 Inch - 64 Inch, DN50-DN1600
Structure: Double Eccentric, Double Offset
Body: Carbon Steel, Stainless Steel
Disc: Carbon Steel, Stainless Steel, Monel
Shaft: Stainless Steel, Monel
Seat: PTFE, RPTFE, PPL
Working Temperature: Low Temperature (T<150°C)
Operator: Worm Gear, Electric Actuator, Pneumatic Actuator
