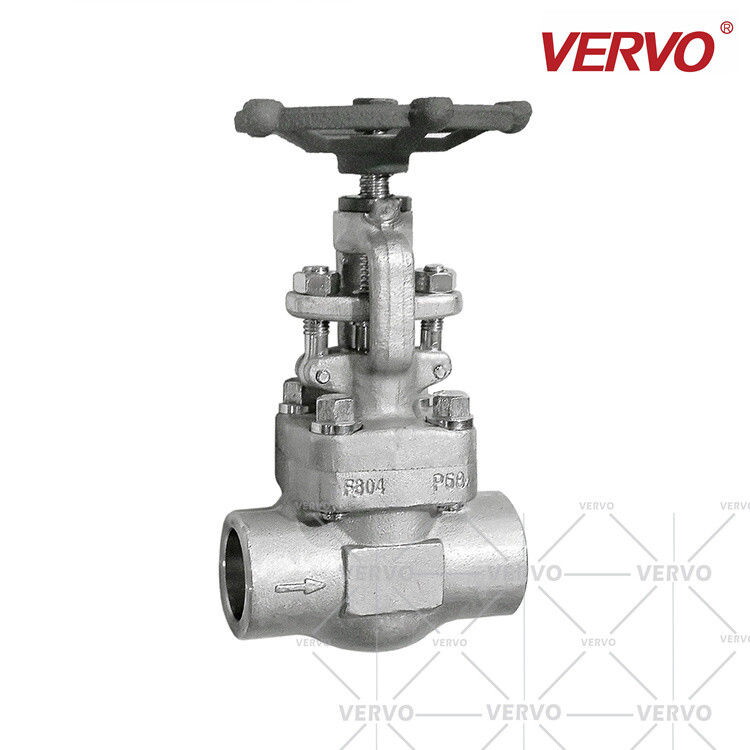

ASTM A182 F304 Globe Valve, API 602, 150 LB, 1 Inch, OS&Y

Name: ASTM A182 F304 Globe Valve, API 602, 150 LB, 1 Inch, OS&Y
SKU: VERVO-GLV-20241227-05
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

As a leading API 602 globe valve manufacturer from China, we offer premium stainless steel valves featuring an ASTM A182 F304 body. These valves are designed with a Class 150 LB pressure rating and 1-inch size, ensuring reliable performance in various industrial applications. The OS&Y design provides smooth operation, while the reduce bore configuration optimizes flow control. With RF flanged ends, these valves offer secure, leak-free connections to a wide range of piping systems. Our API 602 globe valves deliver durability, efficiency, and excellent sealing for long-term service.

Request a quote

Detail Information

API 602 Stainless Steel Globe Valve, Class 150 LB, 1 Inch.

Valve Description:
Globe Valve, Reduce Bore, OS&Y.
Design Standard: API 602
Body Material: ASTM A182 F304
Nominal Size: 1 Inch
Nominal Class: Class 150 LB
End Connection: RF
Operation: Handwheel
Face to Face: ASME 16.10
Test and Inspection: API 598

Product Range:
Body Material: Stainless Steel
Normal Diameter: 1/2 Inch - 2 Inch (DN15 - DN50)
End Connection: BW, Flange, SW.
Pressure Range: Class 150 LB - 1500 LB (PN16 - PN250)
Working Temperature: -29°C - +425°C

Technical Parameters and Characteristics

Product Item	Globe Valve
Nominal Diameter	1/2 Inch - 2 Inch
Design Temp.	Down to -29°C
Design Pressure	Class 150 LB - 1500 LB
Body Material	Stainless Steel
Design Standard	API 602
Face to Face	ASME 16.10
Operation	Handwheel
Connection End	SW, BW, Flange
Test Standard	API 598
Package	Plywood
Application	The oil and gas industry
