Unidirectional Knife Gate Valve, GGG40, PN10, Non-rising Stem

Product Name: Unidirectional Knife Gate Valve, Non-rising Stem
Body Material: Ductile Iron GGG40
Pressure: PN10, Class 150 LB
End Connection: Wafer Type
Operation: Handwheel

The manual knife gate valve is a unidirectional wafer-type valve used for on-off operation in industrial pipelines. The valve's body and seat design prevent clogging during shutoff, even with fine particles in the flow. The beveled knife edge allows the gate to easily cut through thick media. Depending on the working situation, the following types are available: non-rising stem knife gate valve, wafer knife gate valve, lugged knife gate valve, pneumatic knife gate valve, electric knife gate valve, manual knife gate valve, and bevel gear knife gate valve.

Technical Specification

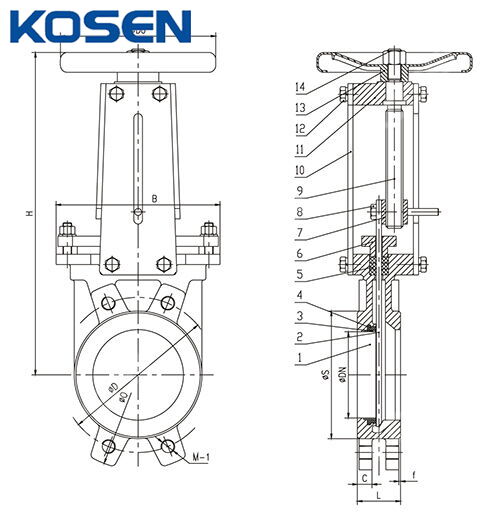

» Structure: Unidirectional Wafer Knife Wedge Gate Valve
» Nominal Diameter: NPS 2-24 Inch (DN50-DN600)
» Design Pressure: PN10, PN16, Class 150 LB
» Temperature Range: -29°C to +538°C
» Max Working Pressure:
DN50 to DN250: 10 bar
DN300 to DN450: 7 bar
DN500 to DN600: 4 bar
» Body Material: Ductile Iron, Carbon Steel, Stainless Steel, Special Alloys, etc.
» Disc Material: Stainless Steel Chrome Plated, Special Alloys, etc.
» Seat Material: Stainless Steel + STL, EPDM (120°C), Viton (200°C), PTFE (200°C), NBR (80°C)
» Flange Standard: GB/T 9113.1, JB/T 79.1, HG 20592, ASME B16.5, EN1092-1
» Face to Face: MSS SP-81
» Applications: Pulp & Paper, Water Treatment, Beverage & Food, Fine Chemicals, Power Plants, Steel Industry, etc.

Product Features

» High flow capacity with low pressure drop
» Gate with rounded edges, extending the life of the rings and packing
» Directional arrow on the body indicating the correct mounting position
» Protector tube for added protection
» Interchangeable drives between handwheel and pneumatic actuator
» Epoxy-coated valves for corrosion protection
» Recommended for water with a maximum of 5% solid particle concentration
