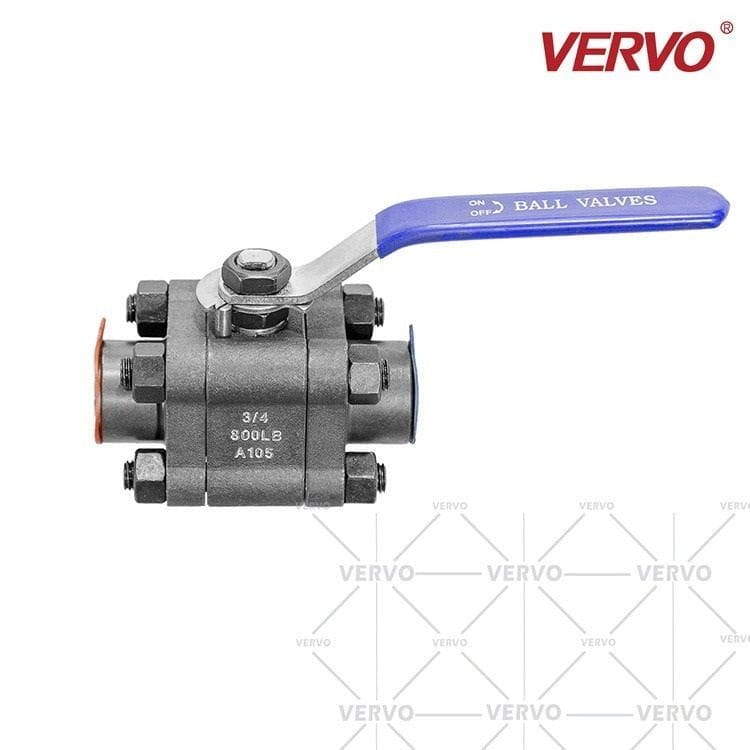

ASTM A105N Floating Ball Valve, 3/4 Inch, 800 LB, API 608
Key Specifications / Features
Explore our premium Floating Type Ball Valve crafted from ASTM A105N Carbon Steel. This high-quality valve features a 3/4-inch size, 800 LB rating, and complies with API 608 standards. With a DN20 size and PN130 pressure rating, it's a reliable choice for various applications. This three-piece valve comes equipped with nipples on both sides and offers easy lever operation. Trust in the durability and performance of our ball valve for your industrial needs.
Detail Information
Ball valve, carbon steel, NPS 3/4, 800 LB, NIPPLES ON BOTH SIDE, FLOATING BALL.
Valve description:
Ball valve, carbon steel, floating ball, three-pieces.
Design: API 608.
Body: ASTM A105N
Nominal size: 3/4 Inch.
Nominal class: 800 LB.
End Connection: NIPPLES ON BOTH SIDE.
OPERATION: LEVER.
Test and inspection: API 598.
Product Range:
Body material: Carbon Steel.
Normal diameter: 1/2 - 2 Inch (DN15 - DN50).
End connection: BW, Flange, NPT.
Pressure range: 150 - 2500 LB (PN16 - PN420).
Working temperature: -29℃ - +429℃.
Technical parameters and characteristics
Valve description:
Ball valve, carbon steel, floating ball, three-pieces.
Design: API 608.
Body: ASTM A105N
Nominal size: 3/4 Inch.
Nominal class: 800 LB.
End Connection: NIPPLES ON BOTH SIDE.
OPERATION: LEVER.
Test and inspection: API 598.
Product Range:
Body material: Carbon Steel.
Normal diameter: 1/2 - 2 Inch (DN15 - DN50).
End connection: BW, Flange, NPT.
Pressure range: 150 - 2500 LB (PN16 - PN420).
Working temperature: -29℃ - +429℃.
Technical parameters and characteristics
| Product | Ball valve. |
| Nominal diameter | 1/2 - 2 Inch. |
| Design temp. | Down to -29℃. |
| Design pressure | Class 150 - 2500 LB. |
| Material | Carbon Steel. |
| Design standard | API608. |
| OPERATION | LEVER. |
| Connection end | Flange. |
| Test standard | API 598. |
| Package | Plywood |
| Application | The oil and gas industry |
