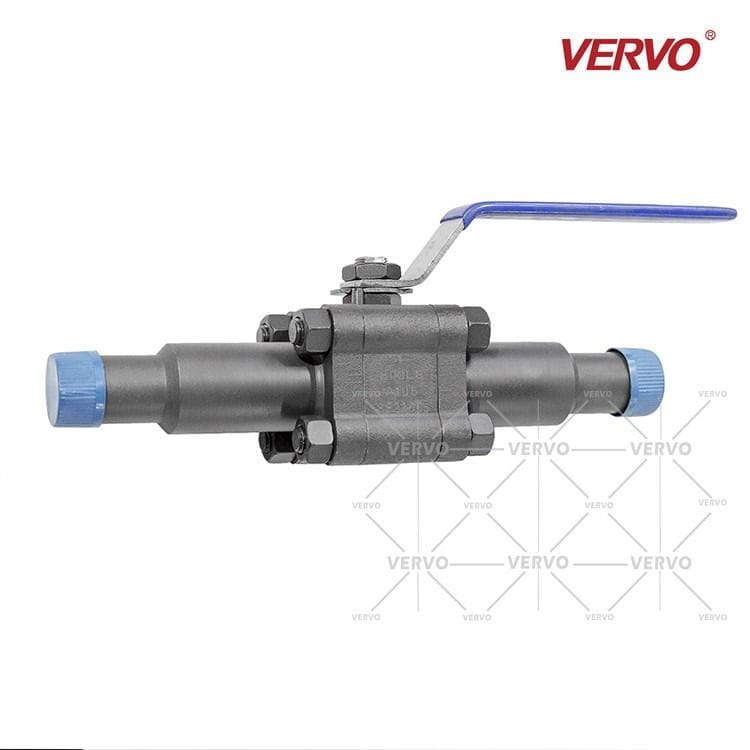

API 608 Floating Ball Valve, 1 Inch, 800 LB, ASTM A105N, SW
Key Specifications / Features
Explore our top-quality API 608 Floating Type Ball Valve Factory: 1 Inch, 800 LB, DN25, PN130, ASTM A105N, Carbon Steel, Three-pieces, SW End, Full Bore, Lever. Perfect for your industrial needs.
Request a quote
Detail Information
Ball valve, carbon steel, NPS 1, FULL bore, 800 LB, A105N, SW.
Valve description:
Ball valve, carbon steel, Floating ball, three pieces.
Design: API 608.
Body: ASTM A105N
Nominal size: 1 Inch.
Nominal class: 800 LB.
End Connection: SW.
OPERATION: LEVER
Test and inspection: API 598.
Product Range:
Body material: Stainless Steel.
Normal diameter: 1/2 - 2 Inch (DN15 - DN50).
End connection: Flange (RTJ, RF), BW, SW, NPT.
Pressure range: 150 - 2500 LB (PN16 - PN420).
Working temperature : -29℃ - +429℃.
Technical parameters and characteristics
Valve description:
Ball valve, carbon steel, Floating ball, three pieces.
Design: API 608.
Body: ASTM A105N
Nominal size: 1 Inch.
Nominal class: 800 LB.
End Connection: SW.
OPERATION: LEVER
Test and inspection: API 598.
Product Range:
Body material: Stainless Steel.
Normal diameter: 1/2 - 2 Inch (DN15 - DN50).
End connection: Flange (RTJ, RF), BW, SW, NPT.
Pressure range: 150 - 2500 LB (PN16 - PN420).
Working temperature : -29℃ - +429℃.
Technical parameters and characteristics
| Product | Ball valve. |
| Nominal diameter | 1/2 - 2 Inch. |
| Design temp. | Down to -40℃. |
| Design pressure | Class 150 - 2500 LB. |
| Material | Carbon Steel. |
| Design standard | API608. |
| OPERATION | LEVER. |
| Connection end | Flange (RTJ, RF), BW, SW, NPT. |
| Test standard | API 598. |
| Package | Plywood |
| Application | The oil and gas industry |
