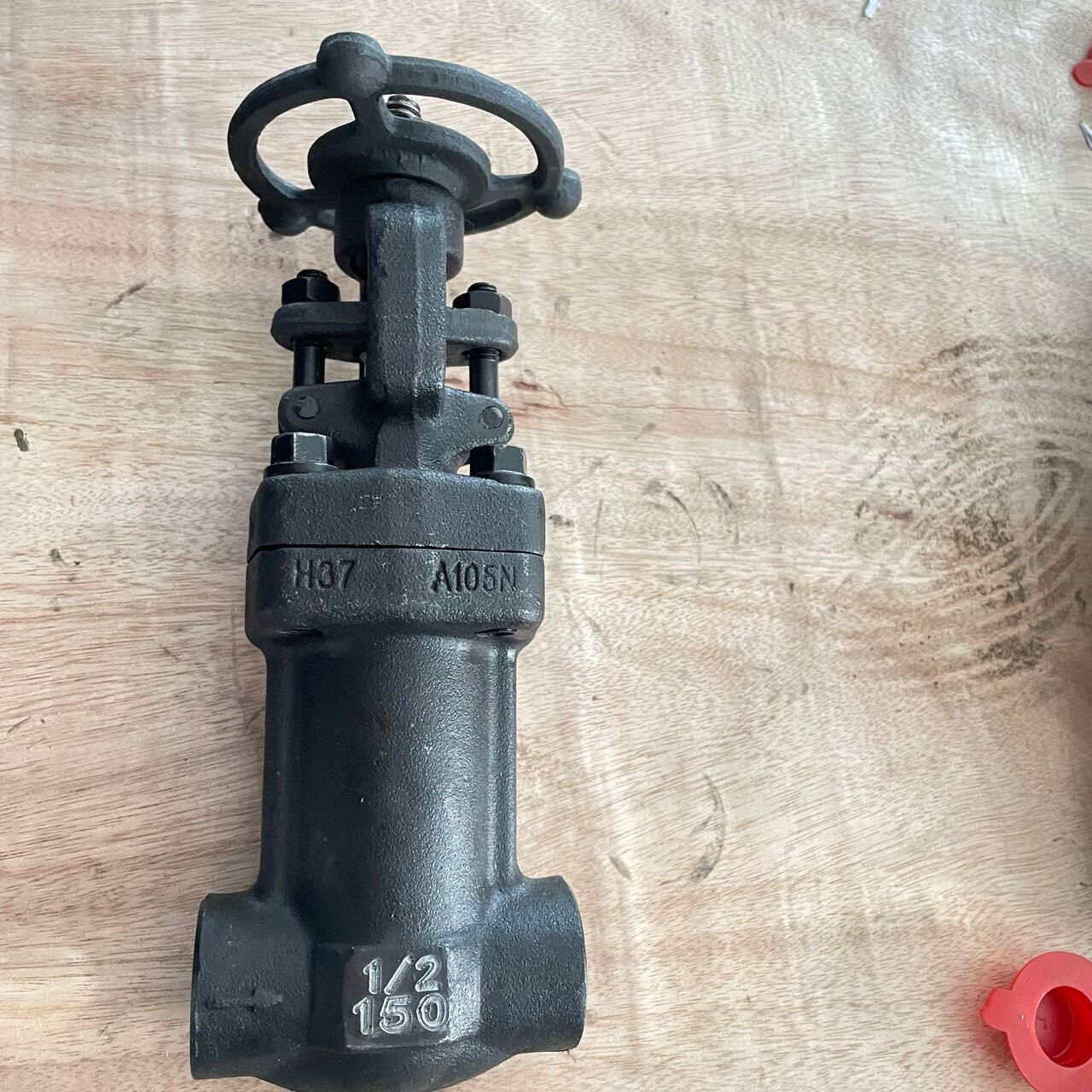

API 602 Globe Valve, ASTM A105N, 1/2 Inch, 150 LB, OS&Y

Name: API 602 Globe Valve, ASTM A105N, 1/2 Inch, 150 LB, OS&Y
SKU: VERVO-GLV-20241227-03
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

As a leading API 602 globe valve factory in China, we manufacture high-quality carbon steel valves with an ASTM A105N body. These valves are available in 1/2 inch (DN15) size, with a Class 150 LB pressure rating and PN20. Featuring an OS&Y design and bolted bonnet, they ensure reliable operation and easy maintenance. The RF flanged ends provide a secure connection to various piping systems. Our API 602 globe valves deliver exceptional performance, durability, and leak-free sealing for a wide range of industrial applications.

Request a quote

Detail Information

Carbon Steel Globe Valve, API 602, RF Flanged, OS&Y.

Globe Valve, Bolted Bonnet, RF, Ring Stem, Integral Seat.

Design Standard: API 602

Body Material: ASTM A105N

Nominal Size: 1/2 Inch

Nominal Class: Class 150 LB

End Connection: RF

Operation: Handwheel

Face to Face: ASME 16.10

Test and Inspection: API 598

Product Range:

Body Material: Carbon Steel

Normal Diameter: 1/2 Inch - 2 Inch (DN15 - DN50)

End Connection: BW, RF, SW

Pressure Range: Class 150 LB - 1500 LB (PN16 - PN250)

Working Temperature: -29°C - +425°C

Technical Parameters and Characteristics

Product Item	Globe Valve
Nominal Diameter	1/2 Inch - 2 Inch
Design Temp.	Down to - 29°C
Design Pressure	Class 150 LB - 1500 LB
Body Material	Carbon Steel
Design Standard	API 602
Face to Face	ASME 16.10
Operation	Handwheel
Connection End	BW, RF, SW
Test Standard	API 598
Package	Plywood
Application	The oil and gas industry
Port	Full, Reduce
