BW A105 Forged Three-Piece Ball Valve 1/2-4 Inch 150-2500LB

Name: BW A105 Forged Three-Piece Ball Valve 1/2-4 Inch 150-2500LB
Brand: www.valves-uk.com
SKU: YV-BAV-02
Price: 0.01 USD
Availability: InStock
Rating: 5 (1 reviews)

Model Number: YV-BAV-02

Key Specifications / Features

A105 Forged Ball Valve Manufacturer: ASTM A105 Forged Three-Piece Ball Valve, BW Ends, 1/2-4 Inch, 150-2500 LB, API 6D, API 608, ASME B16.34, DIN 3357.

ASME B16.34 SW Ends Threaded Ends BW Ends Forged Ball Valve API 6D DIN 3357 1/2 Inch 1 Inch 1-1/4 Inch 1-1/2 Inch 2 Inch 2-1/2 Inch 3 Inch 4 Inch Class 150 Class 300 Class 800 Class 600 Class 900 Class 1500 Class 2500 A105 A182 F304L 000

Detail Information

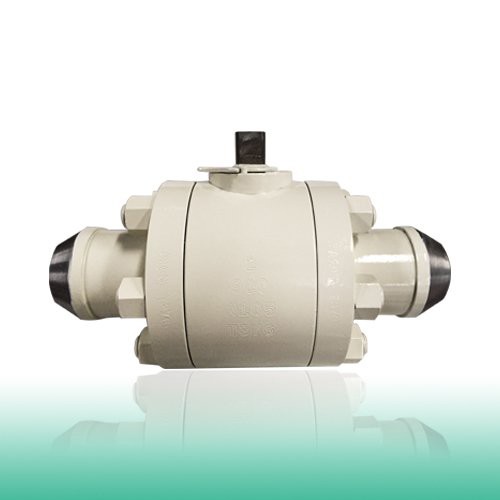

BW A105 Forged Three-Piece Ball Valve
Specifications:
Body Material: ASTM A105.
Size: From NPS 1/2 to NPS 4.
CLASS: From ASME 150 to ASME 2500LB.
Design: API 6D, ASME B16.34, DIN 3357.
Wall thickness: ASME B16.34.
Pressure-temperature Rating: ASME B16.34.
Face-to-face Dimensions for Flanged Valves: ASME B16.10-API 6D.
Flange Design: ASME B16.5.
Socket Weld Ends to ASME B16.11.
Screwed Ends (NPT) to ASME B1.20.1- ASME B16.11.
Butt Welding Ends: ASME B16.25.
Pressure Testing: API 598.

Body Material:
A105, A182 F304, A182 F304L, A182 F316, A182 F316L, A350 LF2, A182 F11, A182 F22, A182 F5, A182 F51, A182 F321.

Quality Assurance (QA):
Every step from procurement through production, welding, assembly, testing, and packaging is in accordance with quality programs and procedures (ASME Section III manual and ISO 9001 manual).
