900LB-1500 LB Globe Valve, Welded Bonnet Full & Standard Port
Key Specifications / Features
900LB-1500 LB Globe Valve Manufacturer: 900LB-1500 LB Globe Valve, 1/4-2 Inch, DN8-DN50, Welded Bonnet Full & Standard Port, MSS SP25, Integral Backseat.
Request a quote
Detail Information
Design Construction:
ASME B16.34, BS 5352
Testing according to api 598
Body bonnet weld to ASMEIX
Socket Weld Ends to ASME B16.11
Screwed Ends (NPT) to ASME B1.20.1
Butt Welding Ends to ASME B16.25
Marking MSS SP25
Integal Backseat
Loose Solid Disc
Outsind Screw and Yoke(OS&Y)
Self aligning two piece packing gland
Ratings:
- carbon steel class 800 1975 psig @ 100°F 138 bar + 38°C
- carbon steel class 1500 3705 psig @ 100°F 255 bar + 38°C

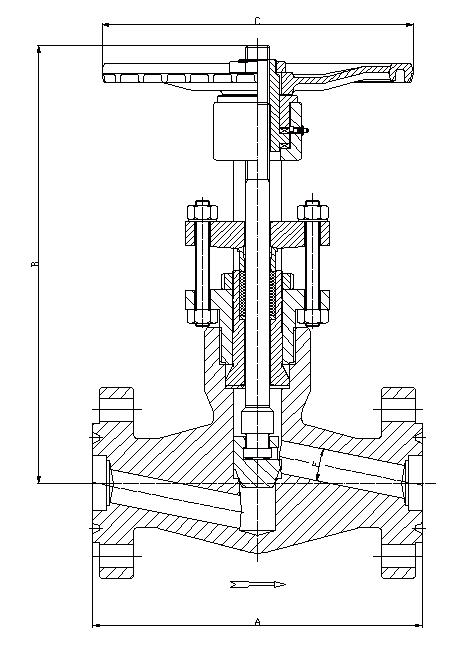

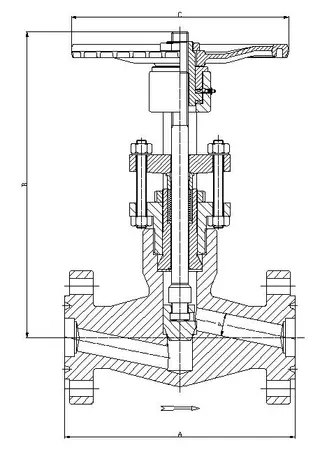

| 900 LB-1500 LB | NPS | （in） | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 11/4 | 11/2 | 2 |
| DN | mm | 8 | 10 | 15 | 20 | 25 | 32 | 40 | 50 | |
| F.B | 7 | 10 | 13 | 18 | 24 | 29 | 36.5 | 46.5 | ||
| A | 111 | 111 | 111 | 130 | 152 | 172 | 220 | 236 | ||
| B | 207 | 207 | 207 | 240 | 258 | 290 | 337 | 354 | ||
| C | 100 | 100 | 100 | 125 | 160 | 160 | 180 | 240 | ||
| kg | 2.4 | 2.2 | 2.0 | 3.8 | 4.2 | 8.0 | 13.2 | 16.8 | ||
