900 LB-1500 LB Globe Valve, Self-Seal, ASME B16.34, BS 5352
Model Number: YV-GBV-10
Key Specifications / Features
900 LB-1500 LB Globe Valve Manufacturer: 900 LB-1500 LB Globe Valve, 1/2-2 Inch, DN15-DN50, Self-Sealing, BS 5352, Self Aligning Two Piece Packing Gland.
Detail Information
ASME B16.34, BS 5352
Testing according to API 598
Socket Weld Ends to ASME B16.11
Screwed Ends (NPT) to ASME B1.20.1
Butt Welding Ends to ASME B16.25
Spiral-wound gasket
Integral backseat
Loose solid disc
Marking MSS SP25
Outside Screw and Yoke (OS&Y)
Self aligning two piece packing gland
Ratings standard class:
- carbon steel class 1500 3705 psig @ 100°F 255 bar + 38°C
- carbon steel class 2500 6170 psig @ 100°F 425 bar + 38°C

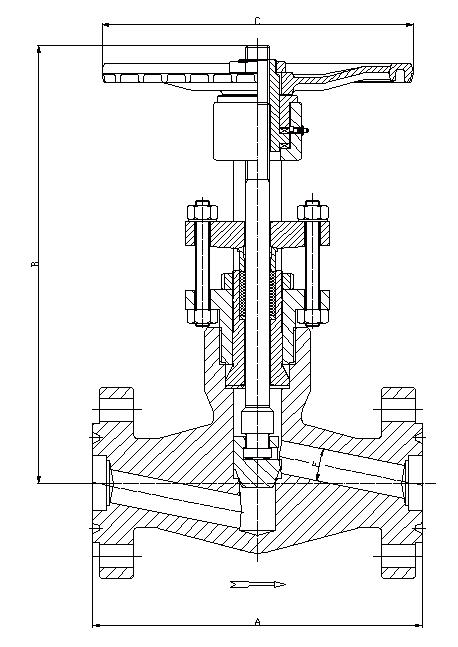

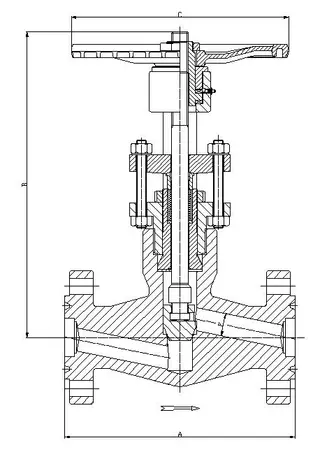

900 LB-1500 LB |
NPS | (in) | 1/2 | 3/4 | 1 | 1/4 | 11/2 | 2 | |
| DN | mm | 15 | 20 | 25 | 32 | 40 | 50 | ||
| F | 13 | 18 | 24 | 29 | 36.5 | 46.5 | |||
| A |
SW or NPT(Rc) | 140 | 140 | 140 | 178 | 178 | 216 | ||
| Flange |
RJ | 216 | 229 | 254 | 279 | 305 | 371.2 | ||
| RN16.0 | 170 | 190 | 210 | 230 | 260 | 300 | |||
| H | 207 | 207 | 240 | 258 | 290 | 337 | |||
| W | 125 | 125 | 160 | 160 | 190 | 240 | |||
| kg |
SW or NPT | 11.2 | 10.5 | 10.1 | 21.0 | 19.6 | 40.4 | ||
| ≤1500 RJ | 15.5 | 16.9 | 18.3 | 25.5 | 34.3 | 52.8 | |||
| RN16.0 MPa | 14.3 | 15.2 | 17.0 | 22.6 | 30.0 | 48.1 | |||
