800-1500LTD Globe Valve, Welded Bonnet, Full Port (Y Type)
Key Specifications / Features
800-1500LTD Globe Valve Manufacturer: 800-1500LTD Globe Valve, 1/2-2 1/2 Inch, DN16-DN66, Welded Bonnet, Full Port (Y Type), ASME B16.34 Limited Class.
Request a quote
Detail Information
Design Construction:
ASME B16.34 Limited Class
Testing according to API 598
Body bonnet weld to ASME IX
Socket Weld Ends to ASME B16.11
Screwed Ends (NPT) to ASME B1.20.1
Butt Welding Ends to ASME B16.25
Integral backseat
Loose solid disc
Marking MSS SP25
Outside Screw and Yoke (OS&Y)
Self aligning two piece packing gland
Ratings:
- carbon steel class 800 2000 psig @ 100°F 138 bar + 38°C
- carbon steel class 1690 4225 psig @ 100°F 291 bar + 38°C

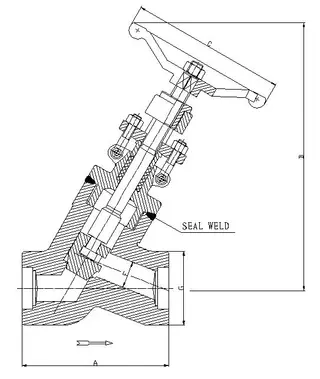

| 800-1500LB | NPS | （in) | 1/2 | 3/4 | 1 | 11/4 | 11/2 | 2 | 21/2 | |
| DN | mm | 15 | 20 | 25 | 32 | 40 | 50 | 65 | ||
| d（F.P) | 13 | 18 | 24 | 29 | 36.5 | 46.5 | 64 | |||
| L | CL800/CL1500 | 108-130 | 108/130 | 130/180 | 160/190 | 160/190 | 190/220 | 220/260 | ||
| H | CL800/CL1500 | B.B | 175/255 | 175/225 | 233/274 | 281/307 | 281/307 | 310/356 | 340/472 | |
| CL800/CL1500 | W.B | 160/217 | 160/217 | 219/225 | 257/274 | 257/274 | 279/307 | 389/463 | ||
| W | CL800/CL1500 | 100/125 | 100/125 | 125/160 | 160/180 | 160/180 | 180/200 | 200/300 | ||
| kg | CL800/CL1500 | B.B | 2.6/3.8 | 2.3/4.2 | 5.5/7.8 | 15.0/17.2 | 17.4/17.6 | 27.0/29.1 | 36.8/40.4 | |
| CL800/CL1500 | W.B | 2.3/3.5 | 2.2/4.0 | 4.1/6.0 | 13.7/15.0 | 13.3/15.0 | 26.0/28.0 | 35.6/37.5 | ||
